ASTM A352 LCC Trunnion Ball Valve, API 6D, 2 Inch, 300 LB

Name: ASTM A352 LCC Trunnion Ball Valve, API 6D, 2 Inch, 300 LB
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

2 Inch 300 LB ball valve is made according to API 6D standards. The valve body is made of ASTM A352 LCC. It has the structural characteristics of a full bore, fixed ball, anti-fire, anti-static and anti-flying valve stem design. Its connection mode is RF. And it has a lever operation mode.

Request a quote

Quick Detail

Product Description

Type	Ball Valve
Size	2"
Pressure	300LB
Connection	RF
Operation	Lever
Body Material	LCC
Design Norm	API 6D
Temp. & Pressure	ASME B16.34
Face to Face	ASME B16.10
End Flange Dimension	ASME 16.5
Fire Safe	API 607
Anti-static, Anti-blowout Stem Materials	NACE MR0175
Wall Thickness	ASME B16.34
Temperature	-46 ~ 150°C
Applicable Medium	Water, Oil and Gas

Detail Information

2 Inch 300 LB Trunnion Mounted Ball Valve RF LCC API 6D Lever

Features

1. Simple structure, small size, and lightweight;
2. Convenient operation, fast opening and closing, tight and reliable, and good sealing performance.

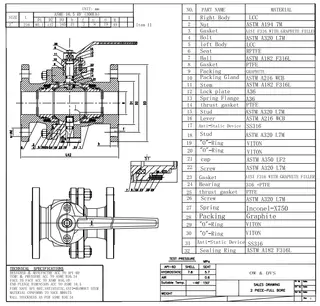

Technical Drawing
