ASTM A216 WCB Floating Ball Valve, 2 Inch, 300 LB, API 6D
Key Specifications / Features
2-inch 300-LB ball valve is made according to API 6D standard. The valve body is made of A216-WCB. It has the structural characteristics of a split type, floating ball, full bore, anti-fire, anti-static and anti-flying valve stem. Its connection mode is RF.
Request a quote
Quick Detail
Product Description
| Type | Ball Valve |
| Size | 2 Inch |
| Pressure | 300 LB |
| Connection | RF |
| Body Material | ASTM A216-WCB |
| Design Norm | API 6D |
| Face to Face Dimensions | ASME B16.10 |
| Flange Ends Dimensions | ASME B16.5 |
| Fire Safe Design | API 607 |
| Test & Inspection Code | API 598 |
| Temperature | -29 - 120°C |
| Applicable Medium | Water, Oil and Gas |
Detail Information
2 Inch 300 LB Floating Ball Valve RF WCB API 6D
Features
1. Small size, lightweight, and convenient for pipeline installation;
2. Simple structure, good sealing performance, multiple valve seat materials, and wide applicability.

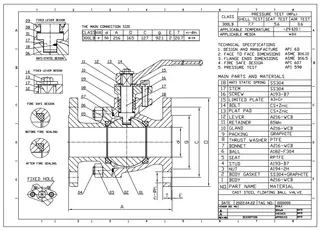

Technical Drawing

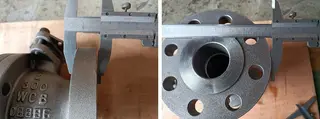

Dimension Checking

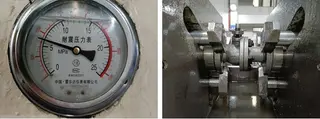

Pressure Testing

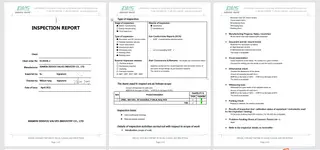

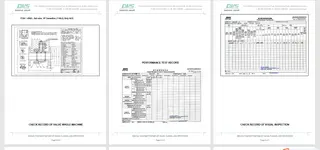

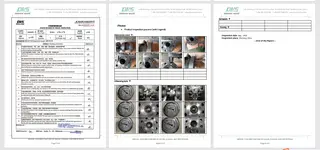

Inspection report
Features
1. Small size, lightweight, and convenient for pipeline installation;
2. Simple structure, good sealing performance, multiple valve seat materials, and wide applicability.
Technical Drawing
Dimension Checking
Pressure Testing
Inspection report
