API 609 Triple Eccentric Butterfly Valve, 4 IN, CL 150, CF8
Key Specifications / Features
The 4 Inch 150 LB butterfly valve is manufactured in accordance with the API 609 standard. Featuring a ASTM A351 CF8 valve body, this valve boasts a triple eccentric design for enhanced performance. The connection type is wafer, and it operates using a worm gear mechanism, ensuring precise and reliable control in various applications.
Request a quote
Quick Detail
| Type: | Eccentric Butterfly Valve |
| Design Norm: | API 609 |
| Size: | 4 Inch/DN100 |
| Pressure: | Class 150 LB |
| Body Material: | ASTM A351 CF8 |
| Connection: | Wafer |
| Operation: | Worm Gear |
| Face to Face Dimension: | EN 558 |
| Flange Dimension: | ASME B16.5 |
| Temperature: | -29 to 120°C |
| Applicable Medium: | Water, Oil and Gas |
Detail Information
On this page
Triple Eccentric Butterfly Valve, API 609, ASTM A351 CF8, 4 Inch/DN100, 150 LB, Wafer Connection.
2. A characteristic of butterfly valves is that they can be fully opened or closed with a simple quarter-turn rotation of the handle or actuator.
Features
1. Butterfly valves are known for their lightweight and compact construction, which makes them easy to install and maintain.2. A characteristic of butterfly valves is that they can be fully opened or closed with a simple quarter-turn rotation of the handle or actuator.

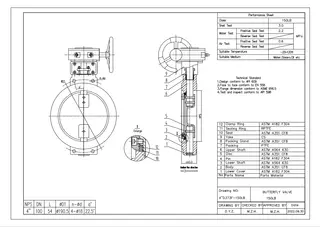

Technical Drawing

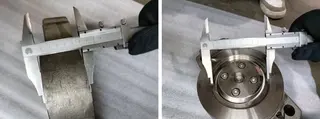

Dimension Checking

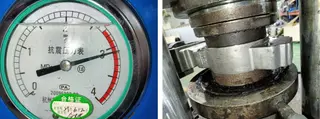

Pressure Testing

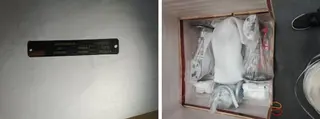

Nameplate & Packing

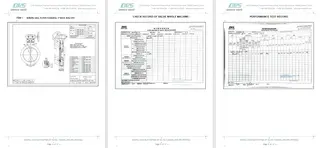

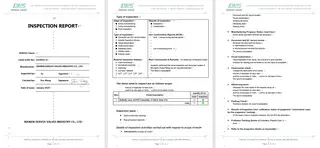

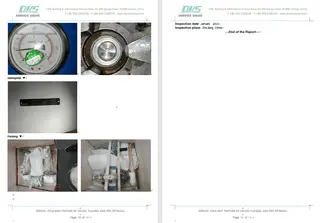

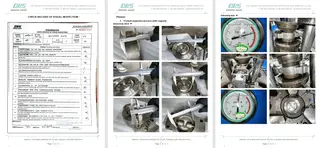

Inspection Report
