ASTM A216 WCB Concentric Butterfly Valve, 14 Inch, 150 LB

Name: ASTM A216 WCB Concentric Butterfly Valve, 14 Inch, 150 LB
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

We Provide ASTM A216 WCB Concentric Butterfly Valves, ASTM A216 WCB Butterfly Valves, Concentric Type, Wafer Ends, 14 Inch, Class 150 LB, DN350, PN20, API 609.

Request a quote

Quick Detail

Type	Butterfly Valve
Size	14"
Pressure	150LB
Connection	Wafer
Operation	Turbine Operation
Body Material	WCB
Design Norm	API 609
End connection	ASME B16.5
Face to Face or End to End	API 609

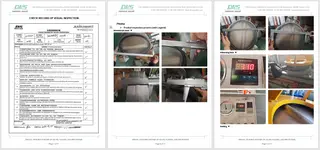

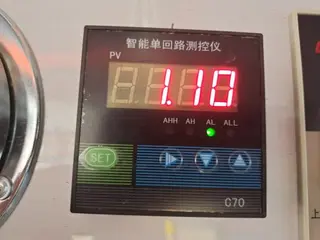

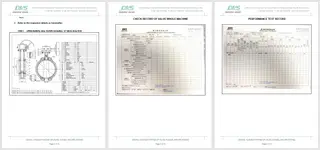

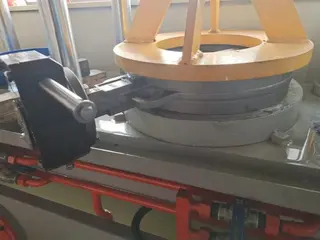

Test & Inspection Code	API 598
Pressure-Temperature Ratings	ASME 16.34
Temperature	-30 - 80°C
Applicable Medium	Water, Oil and Gas

Detail Information

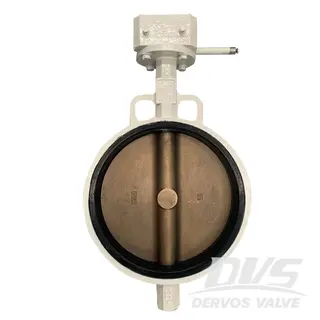

14" 150 LB Concentric Butterfly Valve WCB API 609 Wafer

Introduction

14" 150LB butterfly valve is made according to API 609 standard. The valve body is made of ASTM A216 WCB. It has the structural characteristics of the Concentric type. It has a wafer connection code and turbine operation code.

Features

1. The valve stem axis, butterfly plate center and body center are at the same position;
2. Simple structure and convenient manufacture.

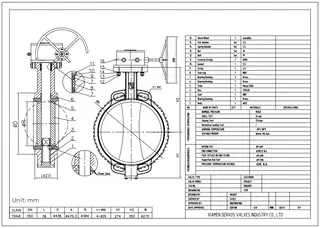

Technical Drawing
