ASTM A536 Concentric Butterfly Valve, API 609, 14IN, CL150
Key Specifications / Features
14 INCH 150 LB butterfly valve is made according to API 609 standard. The valve body is made of A536 65-45-12. It has the structural characteristics of a midline type. Its connection mode is lug-type. And it has a turbine with a locking device operation mode.
Request a quote
Quick Detail
| Type | Butterfly Valve |
| Size | 14" |
| Pressure | 150LB |
| Connection | Lug Type |
| Operation | Turbine with locking device |
| Body Material | A536 65-45-12 |
| Design Norm | API 609 |
| Face-to-Face Dimension | API609 |
| Flange Dimension | ASME B16.5 |
| Test & Inspection Code | API 598 |
| Applicable Medium | Water, Oil and Gas |
Detail Information
14 INCH 150 LB Concentric Butterfly Valve Lug Type A536 API 609
Features
1. Simple structure and convenient manufacturing;
2. The channel design is a full-bore structure, ensuring the flow area of the valve.

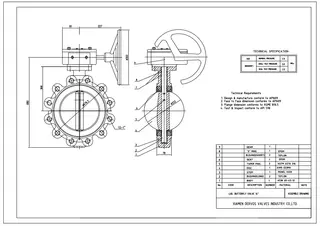

Technical Drawing

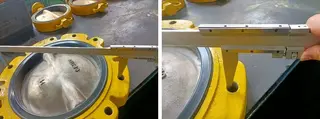

Dimension Checking

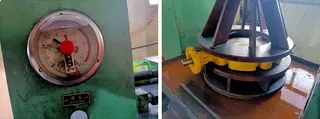

Pressure Testing

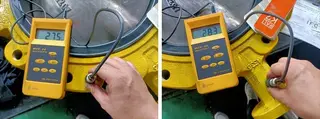

Painting

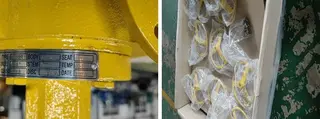

Nameplate & Packing

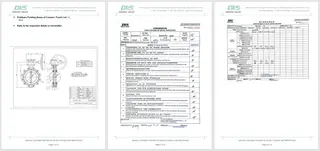

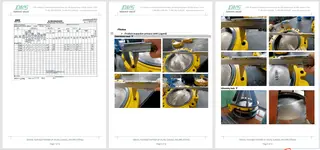

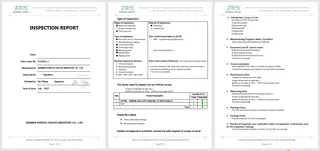

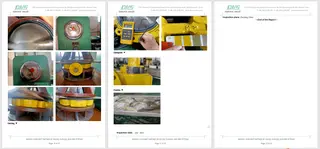

Inspection report
Features
1. Simple structure and convenient manufacturing;
2. The channel design is a full-bore structure, ensuring the flow area of the valve.
Technical Drawing
Dimension Checking
Pressure Testing
Painting
Nameplate & Packing
Inspection report
