ASTM A182 F60 Gate Valve, 1/2 Inch, 800 LB, API 602, FNPT
Key Specifications / Features
We Provide ASTM A182 F60 Gate Valves, ASTM A182 F60 Forged Steel Gate Valves, 1/2 Inch, DN15, 800 LB, API 602, Bolted Cover, HW-OP, OS & Y, SW-FNPT End.
Request a quote
Quick Detail
| Type | Gate Valve |
| Size | 1/2" |
| Pressure | 800LB |
| Connection | SW-FNPT |
| Operation | Handwheel |
| Body Material | A182-F60 |
| Design Norm | API602 |
| Socket Welded Dimension | ANSI B16.11 |
| Screw Ends Dimension | ASME/ANSI B1.20.1 |
| Materials | AlSI/ASTM NACE MRO175 |
| Test & Inspection Code | API598 |
| Applicable Medium | Water, Oil and Gas |
Detail Information
1/2" 800 LB Forged Steel Gate Valve API 602 A182-F60 HW-OP
Introduction
1/2" 800 LB gate valve is made according to API602 standard. The valve body is made of ASTM A182-F60. It has the structural characteristics of bolted cover connection, rigid gate, replaceable valve seat, and OS&Y. Its connection mode is SW-FNPT. And it has a handwheel operation mode.
Features
1. The fluid resistance is small, the external force required for opening and closing is small, and the flow direction of the medium is unrestricted;
2. The body shape is relatively simple, and the casting process is good.

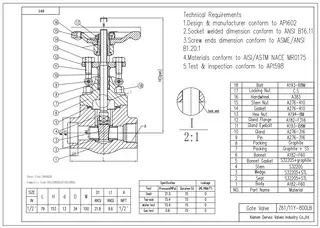

Technical Drawing

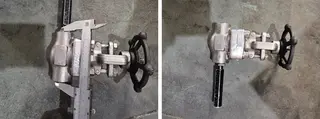

Dimension Checking

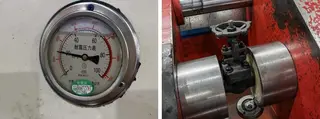

Pressure Testing

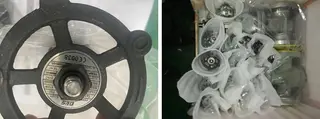

Nameplate & Packing

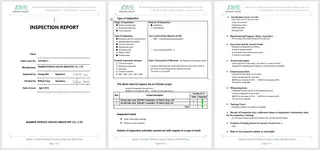

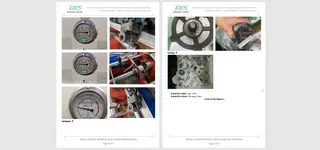

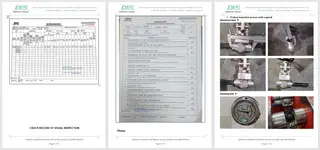

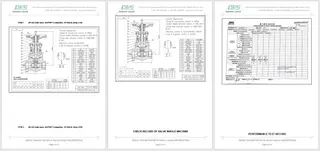

Inspection report
Introduction
1/2" 800 LB gate valve is made according to API602 standard. The valve body is made of ASTM A182-F60. It has the structural characteristics of bolted cover connection, rigid gate, replaceable valve seat, and OS&Y. Its connection mode is SW-FNPT. And it has a handwheel operation mode.
Features
1. The fluid resistance is small, the external force required for opening and closing is small, and the flow direction of the medium is unrestricted;
2. The body shape is relatively simple, and the casting process is good.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection report
