API 602 Gate Valve, 1-1/2 Inch, 800 LB, ASTM A105N, SW

Name: API 602 Gate Valve, 1-1/2 Inch, 800 LB, ASTM A105N, SW
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

1.5 Inch 800 LB gate valve is made according to API 602 standard. The valve body is made of A105N. It has the structural characteristics of a bolt cover, rising stem, bracket, and structural length of 120mm. Its connection mode is SW. And it has hand wheel operation mode.

Request a quote

Quick Detail

Product Description

Type	Gate Valve
Size	1.5 Inch
Pressure	800 LB
Connection	SW
Operation	Handwheel
Body Material	ASTM A105N
Design Norm	API 602
Face to Face Dimensions	MFG'S
End Connection	ASME B16.11
Pressure-temperature	ASME B16.34
Test & Inspection Code	API 598
Temperature	-29 - 425°C
Applicable Medium	Water, Oil and Gas

Detail Information

1.5 Inch 800 LB Forged Steel Gate Valve SW A105N API 602 Handwheel

Features

1. Tight and reliable, widely used in vacuum systems;
2. Compact structure, stable operation, capable of effectively controlling fluid pressure and flow rate, improving industrial production efficiency and safety.

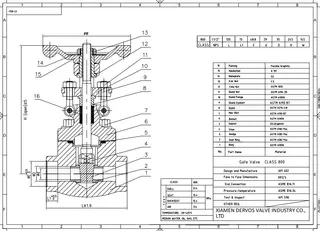

Technical Drawing
