ASTM A182 F304L Gate Valve, 3/4 Inch, 800 LB, API 602

Name: ASTM A182 F304L Gate Valve, 3/4 Inch, 800 LB, API 602
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Shop the finest quality 3/4 inch forged steel gate valve from a trusted manufacturer. This Class 800 LB valve, designed according to API 602 standards, features a bolt cover and rigid wedge for enhanced durability. With a DN20 size and SW end connection, it offers reliable performance. The hand wheel operation ensures convenient control. Order now for reliable, high-quality gate valves that meet industry standards.

Request a quote

Quick Detail

Product Description

Type	Gate Valve
Size	3/4 Inch
Pressure	800 LB
Connection	SW
Operation	Hand Wheel
Body Material	ASTM A182 F304L
Design Norm	API 602
Face-to-Face Dimensions	MFG'S
End Connection	ASME B16.11
Pressure-temperature	ASME B16.34
Test & Inspection Code	API 598
Temperature	-29 - 300°C
Applicable Medium	Water, Oil and Gas

Detail Information

3/4 Inch 800 LB Forged Steel Gate Valve SW F304L API602 Hand Wheel

Introduction

3/4 Inch 800 LB gate valve is made according to API 602 standard. The valve body is made of ASTM A182 F304L. It has the structural characteristics of a bolt cover and rigid wedge. Its connection mode is SW. And it has hand wheel operation mode.

Features

1. Low fluid resistance, sealing surface not subject to erosion when fully open;
2. Simple structure, small size, lightweight, tight and reliable.

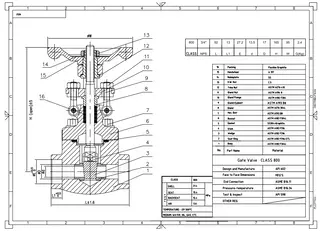

Technical Drawing
