ASTM A105N Globe Valve, 1 Inch, 800 LB, API 602, SW
Key Specifications / Features
1 Inch 800 LB globe valve is made according to API 602 standard. The valve body is made of ASTM A105N+STL. It has the structural characteristics of a pass-through type. Its connection mode is SW. And it has hand wheel operation mode.
Request a quote
Quick Detail
Product Description
| Type | Globe Valve |
| Size | 1 Inch |
| Pressure | 800 LB |
| Connection | SW |
| Operation | Hand Wheel |
| Body Material | ASTM A105N+STL |
| Design Norm | API 602 |
| Face to Face Dimensions | Manufacturer's Std. |
| Flange Ends Dimensions | ANSI B16.11 |
| Test & Inspection Code | API 598 |
| Temperature | -29 - 425°C |
| Applicable Medium | Water, Oil and Gas |
Detail Information
API 602 1 Inch 800 LB Forged Steel Globe Valve A105N SW Handwheel
Features
1. Usually controlled manually, electrically, pneumatically, etc., with flexible and convenient operation;
2. Suitable for fluid control in pipeline systems in various industries, including petroleum, chemical, power, etc.

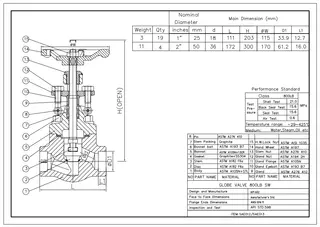

Technical Drawing

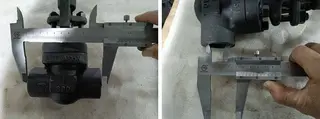

Dimension Checking

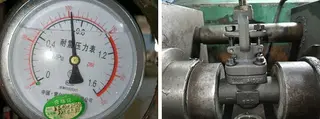

Pressure Testing
Packing

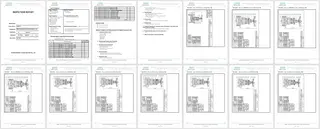

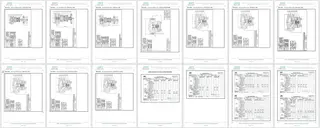

Inspection report
Features
1. Usually controlled manually, electrically, pneumatically, etc., with flexible and convenient operation;
2. Suitable for fluid control in pipeline systems in various industries, including petroleum, chemical, power, etc.
Technical Drawing
Dimension Checking
Pressure Testing
Packing
Inspection report
