Class 800 LB Gate Valve, API 602, ASTM A105N, 1 IN, DN25, SW

Our China Class 800 LB Gate Valve Supplier offers high-quality forged gate valves designed to meet API 602 standards and manufactured from carbon steel ASTM A105N. These valves feature a 1-inch diameter (DN25) and a pressure rating of PN130, making them suitable for high-pressure applications. Equipped with socket welded ends, they ensure secure and reliable connections. The manual operation design allows for easy control.

Product Name: API 602 Forged Steel Gate Valve
Design Standard: API 602
Body Material: Carbon Steel ASTM A105N
Size: 1 Inch, DN25
Pressure: Class 800 LB, PN130
End Connection: Socket Welded End
Operation: Manual
Medium: Water, Oil, Gas, etc
Temperature Range: -29°C to 595°C

Forged Steel Gate Valves are engineered and produced in strict adherence to international standards such as API 602, ASME B16.34, DIN 3202, or equivalent. These valves boast a compact yet extremely robust design, making them ideal for high-pressure and high-temperature applications. The optional solid CoCr alloy wedge ensures low friction and extended service life. The packing rings are precompressed to 4000 psi, providing a highly reliable seal. For welded bonnet valves, the bonnet is threaded in and torqued to a precisely engineered torque value, with the body-bonnet joint further secured by strength welding. This dual protection mechanism (body, bonnet threads, and strength weld) effectively guards against leakage. The fully guided wedge design minimizes wear on seating surfaces. Additionally, optional features include double packing, leak-off connection, live-loading, and a packing blowout mechanism for easy removal of old packing.

Technical Specification

» Size Range: 1/2-2 Inch (DN15-DN50) (for Forged Items)
» Design Pressure: Class 150-2500 LB (PN10-PN420)
» Materials:
   Carbon Steel, Alloy Steel, Stainless Steel, Duplex Steel, etc
   ASTM A105N, A350 LF2, A182 F11, F22, F304, F304L, F316, F316L
» Trim Materials: 13%Cr, ASTM A182 F11, F22, SS 304, SS 304L, SS 316, SS 316L, and other specials
» End Connections: SW, FNPT, BW, RF, RTJ, Grooved
» Design and Manufacture: ASME B16.34, API 602
» Face to Face (End to End): ANSI B16.10
» Flanged Connection: ANSI B16.5
» Test and Inspection: API 598, API 6D
» Butt Welded Ends: ANSI B16.5
» Threaded Ends: ASME B1.20.1
» Socket-Weld Ends: ASME B16.11

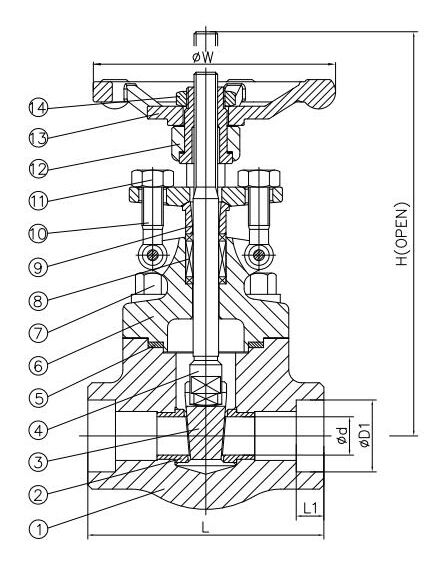

Structural Diagram

Product Features

» OS&Y, Outside Stem and Yoke
» Metal-sealed (API Trim #1, #5, #8, #10, etc.)
» Optional Locking Device or Stem Extension
» Optional Bolted Bonnet, Welded Bonnet or Pressure Sealed Bonnet
» Optional Direct Mounting to ISO 5211
» Full Bore or Reduce Port
