ASTM A105 Floating Ball Valve, DN40, PN40, ISO 17292, RF
Key Specifications / Features
DN40 PN40 ball valve is made according to ISO 17292 standard. The valve body is made of ASTM A105. It has the structural characteristics of floating ball and full bore. Its connection mode is EN 1092-1 B1. And it has lever operation mode.
Request a quote
Quick Detail
Product Description
| Type | Ball Valve |
| Size | DN40 |
| Pressure | PN40 |
| Connection | EN 1092-1 B1 |
| Operation | Lever |
| Body Material | ASTM A105 |
| Design Norm | ISO17292 |
| Ends Connection | RF |
| Test & Inspection Code | EN 12266 |
| Connection Ends | EN 1092-1 |
| Fire Safe Design | API 607 |
| F-F Dimension | EN 558 |
| Temperature | -29 ~ 120°C |
| Applicable Medium | Water, Oil and Gas |
Detail Information
ISO 17292 DN40 PN40 Floating Ball Valve A105 Lever EN 1092-1 B1
Features
1. Small size, light weight, and simple structure;
2. Compact structure, reliable sealing, convenient maintenance, not easily eroded by media, easy to operate and maintain.

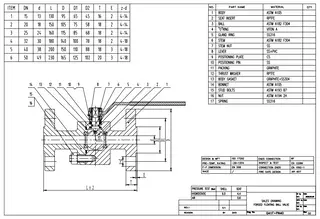

Technical Drawing

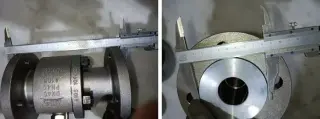

Dimension Checking

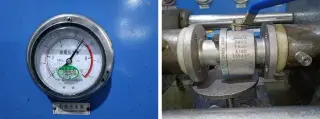

Pressure Testing

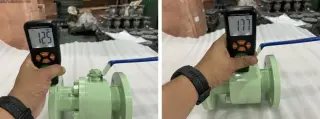

Painting

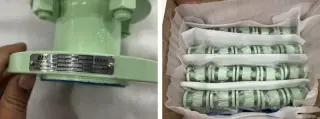

Nameplate & Packing

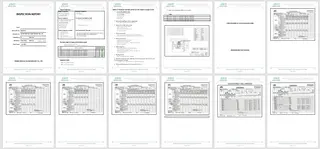

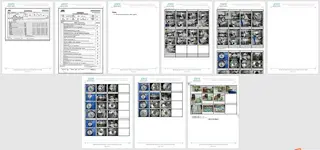

Inspection report
Features
1. Small size, light weight, and simple structure;
2. Compact structure, reliable sealing, convenient maintenance, not easily eroded by media, easy to operate and maintain.
Technical Drawing
Dimension Checking
Pressure Testing
Painting
Nameplate & Packing
Inspection report
