ASTM A182 F316 Trunnion Ball Valve, 3 Inch, 300 LB, API 6D
Key Specifications / Features
DN80 PN40 ball valve is made according to API6D standards. The valve body is made of ASTM A182 F316. It has the structural characteristics of a fixed ball, full bore, fireproof, anti-static and anti-flying valve stem. Its connection mode is RF. And it has turbine operation mode.
Request a quote
Quick Detail
| Type | Ball Valve |
| Size | DN80 |
| Pressure | PN40 |
| Connection | RF |
| Operation | Turbine operation |
| Body Material | A182 F316 |
| Manufacture | API 6D |
| Pressure/Temperature | EN1092 |
| Face to Face | API 6D |
| Flange | EN1092-1(B1) |
| Test & Inspection Code | API 6D |
| Temperature | -29 ~ 121°C |
| Applicable Medium | Water, Oil and Gas |
Detail Information
DN80 PN40 Trunnion Mounted Ball Valve RF F316 API 6D Turbine
Features
1. Low fluid resistance, simple structure, small volume, and lightweight;
2. Tight and reliable, easy to operate, quick to open and close.

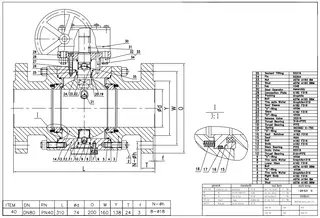

Technical Drawing

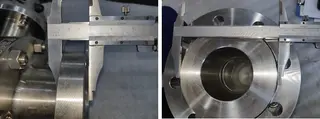

Dimension Checking

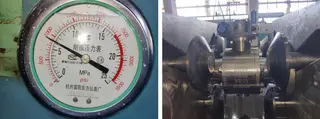

Pressure Testing

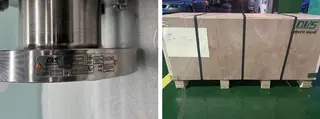

Nameplate & Packing

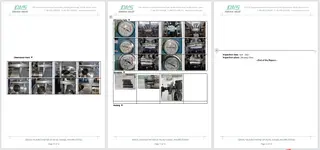

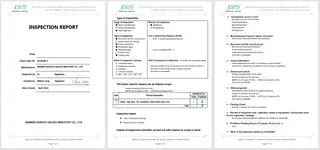

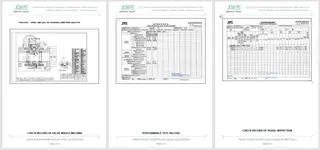

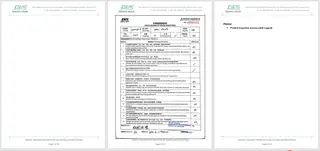

Inspection report
Features
1. Low fluid resistance, simple structure, small volume, and lightweight;
2. Tight and reliable, easy to operate, quick to open and close.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection report
