ASTM 351 CF8M Wafer Check Valve, 3 Inch, 300 LB, API 594
Key Specifications / Features
3 3-inch 300-LB wafer check valve is made according to API 594 standard. The valve body is made of ASTM A351 CF8M+STL. It has the structural characteristics of a double disc. Its connection mode is wafer.
Request a quote
Quick Detail
Product Description
| Type | Check Valve |
| Size | 3 Inch |
| Pressure | 300 LB |
| Connection | Wafer |
| Body Material | A351 CF8M+STL |
| Design Norm | API 594 |
| Pressure-temperature | ANSI B16.34 |
| Flange Ends | ANSI B16.5 |
| Face to Face Dimension | API 594 |
| Test & Inspection Code | API 598 |
| Max. Temp. | 325°C |
| Applicable Medium | Water, Oil and Gas |
Detail Information
3 Inch 300 LB Dual Plate Wafer Check Valve CF8M Wafer API 594
Features
1. Easy maintenance and upkeep, able to operate stably for a long time, with a longer service life;
2. Simple in structure, easy to install, and widely applicable, it is one of the important valves commonly used in industrial pipeline systems.

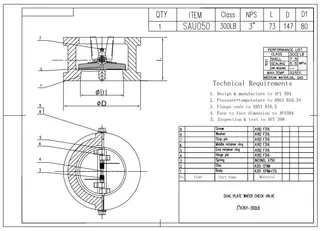

Technical Drawing

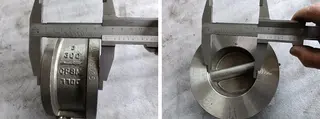

Dimension Checking

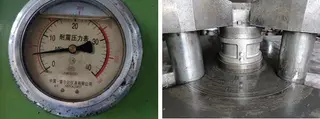

Pressure Testing

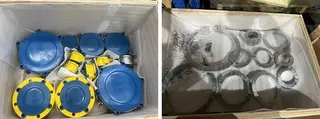

Packing
Inspection report
Features
1. Easy maintenance and upkeep, able to operate stably for a long time, with a longer service life;
2. Simple in structure, easy to install, and widely applicable, it is one of the important valves commonly used in industrial pipeline systems.
Technical Drawing
Dimension Checking
Pressure Testing
Packing
Inspection report
