ASTM A351 CF8M Lug Check Valve, 3 Inch, 600 LB, API 594
Key Specifications / Features
3 Inch 600 LB check valve is made according to API 594 standards. The valve body is made of ASTM A351 CF8M+STL. It has the structural characteristics of a double disc. Its connection mode is LUG.
Request a quote
Quick Detail
Product Description
| Type | Check Valve |
| Size | 3 Inch |
| Pressure | 600 LB |
| Connection | LUG |
| Body Material | A351 CF8M+STL |
| Design Norm | API 594 |
| Pressure-temperature | ANSI B16.34 |
| Flange Ends | ANSI B16.5 |
| Face to Face Dimension | API 594 |
| Test & Inspection Code | API 598 |
| TEMP. | -29 - 325 ℃ |
| Applicable Medium | Water, Oil and Gas |
Detail Information
3 Inch 600 LB Dual Plate Wafer Lug Type Check Valve CF8M API594
Features
1. It has a lower flow resistance and provides multiple connection methods to meet the needs of different pipeline systems;
2. Widely used in industries such as petroleum, chemical, metallurgy, and power.

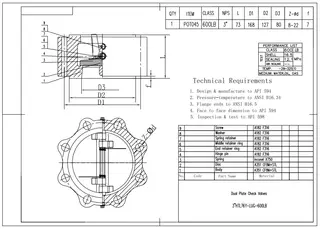

Technical Drawing

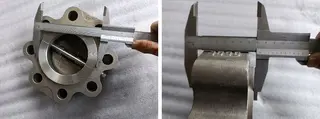

Dimension Checking

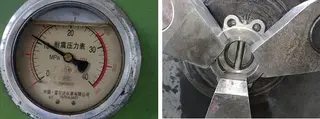

Pressure Testing

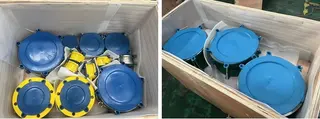

Packing

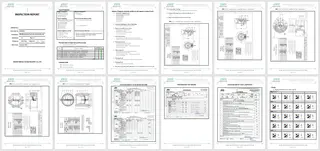

Inspection report
Features
1. It has a lower flow resistance and provides multiple connection methods to meet the needs of different pipeline systems;
2. Widely used in industries such as petroleum, chemical, metallurgy, and power.
Technical Drawing
Dimension Checking
Pressure Testing
Packing
Inspection report
