ASME B16.34 Floating Ball Valve, 1 Inch, 1000 WOG, A351 CF8M
Key Specifications / Features
1 Inch 1000 WOG ball valve is made according to ASME B16.34 standard. The valve body is made of ASTM A351 CF8M. It has the structural characteristics of floating ball and full bore. Its connection mode is BSP. And it has lever operation mode.
Request a quote
Quick Detail
Product Description
| Type | Ball Valve |
| Size | 1 Inch |
| Pressure | 1000WOG |
| Connection | BSP |
| Operation | Lever |
| Body Material | CF8M |
| Design Norm | ASME B16.34 |
| End to End | The Industry Standard |
| Thread Ends | BSP |
| Product Style | Q11PPL-1000WOG |
| Test & Inspection Code | API 598 |
| Temperature | -20 - 250°C |
| Applicable Medium | Water, Oil and Gas |
Detail Information
1 Inch 1000 WOG Floating Ball Valve BSP CF8M ASME B16.34 Lever
Features
1. Mainly used for cutting, distributing, and changing the direction of medium flow on pipelines;
2. Compact structure, reliable sealing, simple structure, and convenient maintenance.

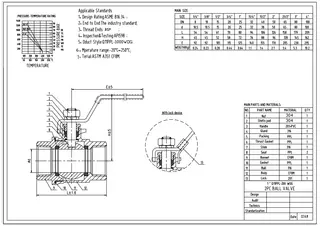

Technical Drawing

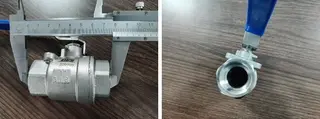

Dimension Checking

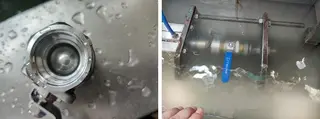

Pressure Testing

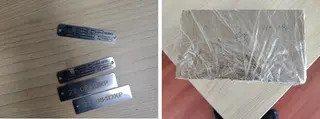

Nameplate & Packing

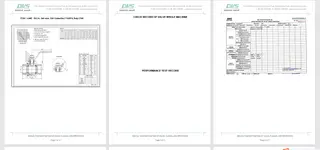

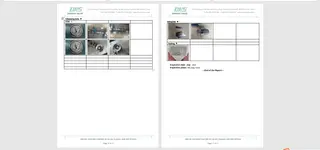

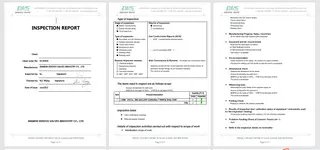

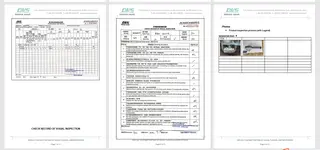

Inspection report
Features
1. Mainly used for cutting, distributing, and changing the direction of medium flow on pipelines;
2. Compact structure, reliable sealing, simple structure, and convenient maintenance.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection report
