Trunnion Mounted Ball Valve, DN50, PN100, A105, ISO 17292
Key Specifications / Features
DN50 PN100 ball valve is made according to ISO 17292 standard. The valve body is made of ASTM A105. It has the structural characteristics of fixed ball, full bore, anti-fire, anti-static, and anti-flying valve stem. Its connection mode is EN1092-1 D. And it has turbine operation mode.
Request a quote
Quick Detail
Product Description
| Type | Ball Valve |
| Size | DN50 |
| Pressure | PN100 |
| Connection | EN1092-1 D |
| Operation | Turbine Operation |
| Body Material | ASTM A105 |
| Design Norm | ISO 17292 |
| End to End | GB/T 12221-2005 |
| End Connection | DIN EN 1092-1 |
| Test & Inspection Code | ISO 5208 |
| Temperature | -29 - 150°C |
| Applicable Medium | Water, Oil and Gas |
Detail Information
DN50 PN100 Trunnion Mounted Ball Valve EN 1092-1 D A105 ISO 17292
Features
1. Effortless operation and reliable sealing performance;
2. Compact structure, simple structure, and convenient maintenance.

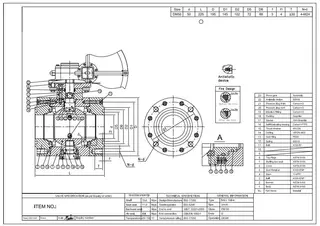

Technical Drawing

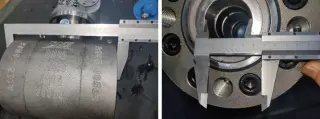

Dimension Checking

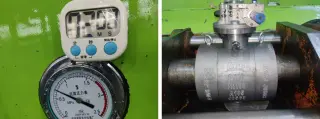

Pressure Testing

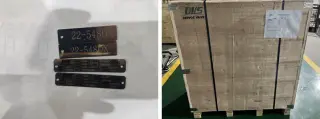

Nameplate & Packing

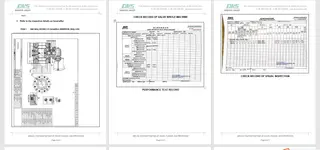

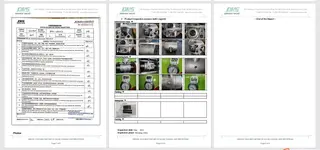

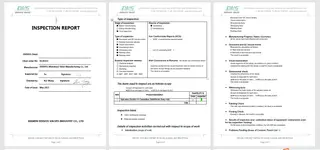

Inspection report
Features
1. Effortless operation and reliable sealing performance;
2. Compact structure, simple structure, and convenient maintenance.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection report
