API 602 Lift Check Valve, ASTM A105, 3/4 Inch, 800 LB, NPT

Name: API 602 Lift Check Valve, ASTM A105, 3/4 Inch, 800 LB, NPT
SKU: Kelly-CV-20240823-03
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Our 3/4-inch, Class 800 LB check valve is built to API 602 standards, with a valve body constructed from ASTM A105N+STL. Featuring a globe shape and a bolted cover, this valve is designed for durability and reliable performance. It connects using NPT threads, ensuring a secure fit. Ideal for a range of applications, this check valve provides efficient flow control and protection against backflow in various industrial settings.

Request a quote

Quick Detail

Type	Lift Check Valve
Size	3/4 Inch, DN20
Pressure	Class 800 LB, PN130
Connection	NPT
Body Material	ASTM A105N+STL
Design Norm	API 602
Socket Ends Dimension	ASME/ANSI B1.20.1
Materials	AISI/ASTM

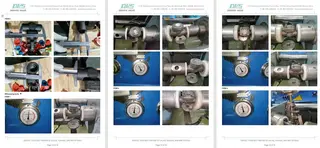

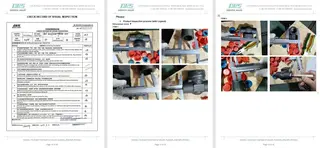

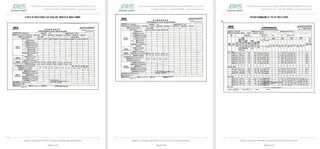

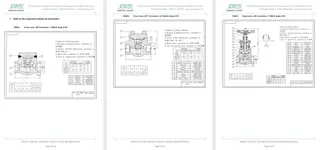

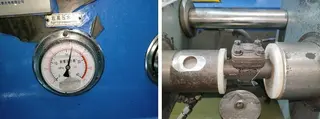

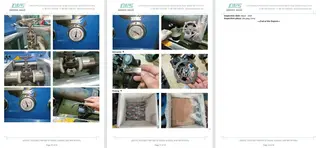

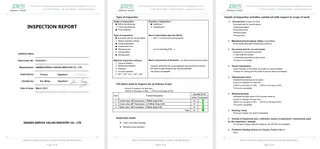

Test & Inspection Code	API 598
Applicable Medium	Water, Oil and Gas

Detail Information

On this page

Features

1. The valve disc's vertical movement ensures rapid closure when fluid flow stops, effectively minimizing water hammer and protecting the pipeline system from impact.

2. Versatile in application, it handles various media including liquids, gases, and steam, and is widely used in water treatment, petrochemical industries, and heating systems.
