API 594 Dual Plate Wafer Check Valve, ASTM A105, DN100, PN40
Key Specifications / Features
DN100 PN40 check valve is made according to API 594 standard. The valve body is made of A105. It has the structural characteristics of dual plate and wafer type. Its connection mode is wafer.
Request a quote
Quick Detail
Product Description
| Type | Check Valve |
| Size | DN100 |
| Pressure | PN40 |
| Connection | Wafer |
| Body Material | A105 |
| Design Norm | API 594 |
| Pressure-temperature | ANSI B16.34 |
| Flange Ends | EN 1092-1 |
| Face to Face Dimension | Customer Request |
| Test & Inspection Code | API 598 |
| Temperature | ≤425°C |
| Applicable Medium | Water, Oil and Gas |
Detail Information
API 594 DN100 PN40 Dual Plate Wafer Check Valve A105
Features
1. Safe and reliable structural performance, strong anti-interference, and fast closing speed;
2. Due to its shorter structural length than regular check valves, it is suitable for occasions with limited installation space.

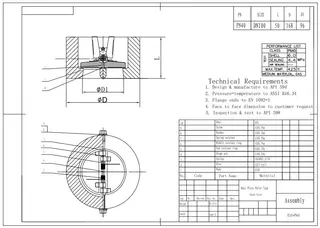

Technical Drawing

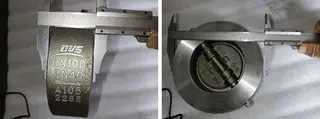

Dimension Checking

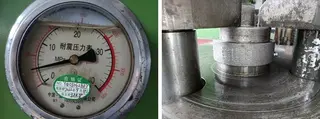

Pressure Testing

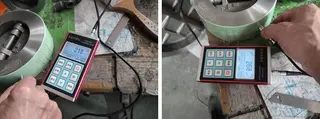

Painting

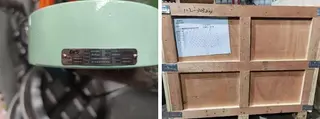

Nameplate & Packing

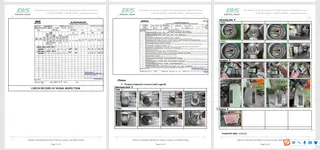

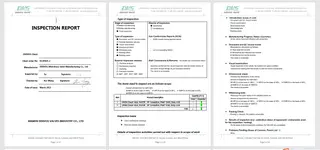

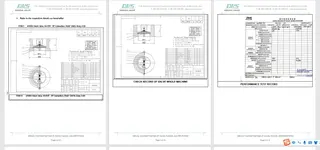

Inspection report
Features
1. Safe and reliable structural performance, strong anti-interference, and fast closing speed;
2. Due to its shorter structural length than regular check valves, it is suitable for occasions with limited installation space.
Technical Drawing
Dimension Checking
Pressure Testing
Painting
Nameplate & Packing
Inspection report
