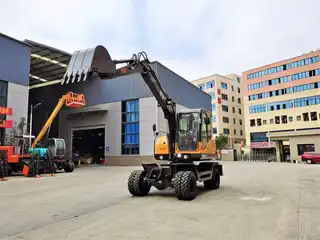

7 Ton Wheeled Rubber Duck Digger Excavator, 0.25m³ Bucket

Name: 7 Ton Wheeled Rubber Duck Digger Excavator, 0.25m³ Bucket
SKU: WE-230815-WE-01
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Step into the realm of excellence at the Wheeled Rubber Duck Digger Excavator Factory. Our collection showcases a formidable 7-ton apparatus, energized by engines spanning 45 to 58.8 kW. Sporting an impressive max reach of 6120 mm and a tidy tail swing radius of 1800 mm, this excavator promises dexterity within confined spaces. With bucket capacities of 0.25 m³, it emerges as your answer to accomplishing versatile and efficient digging operations.

Request a quote

Detail Information

Operating Weight: 7000 kg, 7 Tons
Engine Power: 4 / 58.8 kw
Tail Swing Radius: 1800 mm
Bucket Capacity: 0.25 m³
Max Walking Speed: 25 km/h
Max Digging Reach: 6120 mm
Max Digging Depth: 3250 mm
Max Traction Force: 60 KN
Gradeability: 30 °/58%

Specifications
RANGE OF OPERATION
Boom length	3330mm
Arm length	1850mm
Maximum Digging Reach	6120mm
Maximum Digging Depth	3250mm
Maximum Digging Force	45KN
Maximum Digging Height	6800mm
Maximum Dumping Height	4750mm
Back-end Radius of Gyration	1800mm
Dimension
(LengthWidthHeight) Rravel Position	570021002970mm
Wheel Base	2600mm
Track(Front/Rear)	1660mm/1580mm
Ground Clearance of Counterweight	1120mm
Min Ground Clearance	285mm
Technical Parameters
Angle Of Rotation	360°
Machine Weight	7000kg
Engine Model	Yucai/Yunnei
Rated Power	4kw/58.8kw
Rated Speed	2200r/Min
Hydraulic System Working Pressure	21Mpa
Hydraulic System Flow	150L/Min
Metering Gear Pump	72ml/r
Max Hauling Force	60KN
Walking Speed	255km/h
Grade Climbing Ability	58%/30°
Tyre Model	8.25-16
Volume Of Bucket	0.25m³
Revolution Overdrive Pressure	20Mpa
Full Circle Swinging Time	5.5s
Fqt Fuel Quantity	≥4L/h
Capacity Of The Fuel Tank	110L
Hydraulic Tank Capacity	110L
