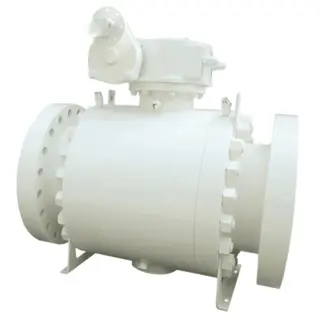

3 Piece Ball Valve, ASTM A105, 10 Inch, Class 600 LB, API 6D

Name: 3 Piece Ball Valve, ASTM A105, 10 Inch, Class 600 LB, API 6D
SKU: WV-240103-TMBV-11
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

As a leading 3 Piece Ball Valve Factory, we produce high-performance valves designed for demanding applications. Crafted from ASTM A105 material and adhering to API 6D standards, our valves boast a substantial size of 10 inches and a Class 600 LB rating. Featuring high shut-off sealing, trunnion mounted design, DN250 size, PN100 rating, Flanged End, and efficient Gear Operation, our valves ensure reliable and precise control in diverse industrial settings.

Request a quote

Detail Information

Size Range: 10 Inch, DN250
Pressure: ASME CL600, Class 600 LB, PN100
Standard: API 6D
Body Material: ASTM A105
End Connection: Flanged
Test: API Standard 598
Temperature Range: -196℃ - 650℃
Operation: lever, gear, electric, pneumatic, hydraulic, gearbox
Feature: High Shut-Off Sealing

Product Range

Size Range: 2 Inch - 48 Inch
Pressure: ASME CL150, CL300, CL600
Body Material: Carbon steel, stainless steel, alloy steel, duplex steel
Applicable Standards:
Ball Valve design according to BS 5351, API 6D, API 608, ASME B16.34
Face to Face: ASME B16.10, API 6D
End Flanged: ASME B16.5, ASME B16.47
Butt Welded ends: ASME B16.25
Fire Safety: API607, API 6FA
Inspection and test: API 598, API 6D

Design Description:

1. Structure: 2 pieces or 3 pieces body
2. High shut-off sealing mechanism and low torque operation
3. PN design can be available
4. Block and bleed function
5. Blow out proof stem construction
6. Emergency grease injection (option)
7. Self-cavity pressure relief
8. ISO 5211 actuator mounting
9. Anti-static design
10. Fire-safe design
11. Locking device (for lever handle operation)

Send your message to this supplier

Name *

Company

Email *

Phone

Message *

FAQs

Can you supply valves with 3.2 certification?

Yes, 3.2 certificates are available at an additional cost. We work with reputable third-party inspection agencies (TPI) such as BV, TUV, SGS, or LR, who will inspect the valves and issue signed certificates provided with the shipment.

Можете ли вы поставить клапаны с сертификатом 3.2?

Да, сертификат 3.2 доступен за дополнительную плату. Мы привлекаем авторитетные третьи инспекционные организации (TPI), такие как BV, TUV, SGS, LR, для инспекции клапанов. Сертификаты подписываются и выдаются этими организациями и предоставляются вместе с клапанами.

¿Pueden suministrar válvulas con certificación 3.2?

Sí, el certificado 3.2 está disponible con coste adicional. Contamos con organismos de inspección reconocidos como BV/TUV/SGS/LR para inspeccionar las válvulas. Los certificados serán firmados y emitidos por estos TPI y se entregarán junto con las válvulas.
