Accumulator Hydraulic Control Butterfly Valve, DN1600
Key Specifications / Features
China DN1600 Accumulator Hydraulic Control Butterfly Valve Manufacturer Shinjo Supplies Size From DN300~DN3500 Accumulator Hydraulic Control Butterfly Valve.
Request a quote
Detail Information
Specifications:
Design standard: JB/T8527.
Valve type: Double-eccentric Butterfly Valve
Body material: WCB.
Disc seal: EPDM
Nominal diameter: DN1600
Pressure: PN16.
End connection: RF Flange
Face to face: DIN3202 F4.
Working Medium: Water
Product Ranges:
Body Material: Carbon steel, Stainless steel, Ductile Iron.
Normal diameter: 12"~140" (DN300~DN3500).
End connection: Flanged.
Pressure range: PN16~PN25.
Working Medium: Water.

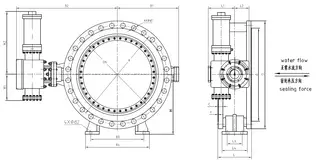

Accumulator Hydraulic Control Butterfly Valve Drawing:
Design standard: JB/T8527.
Valve type: Double-eccentric Butterfly Valve
Body material: WCB.
Disc seal: EPDM
Nominal diameter: DN1600
Pressure: PN16.
End connection: RF Flange
Face to face: DIN3202 F4.
Working Medium: Water
| Valve Open Time | 60-120 S （Adjustable） | |||
| Valve Close Time | 65%-90% Closed in 60 S （Adjustable), Fully Closed in 90-240 S （Adjustable） | |||
| Max Hydraulic Pressure | 1.60 MPa | |||
| Leak | Zero Leak | |||
| Flow Resistance Coefficient | ≤0.09 | |||
Product Ranges:
Body Material: Carbon steel, Stainless steel, Ductile Iron.
Normal diameter: 12"~140" (DN300~DN3500).
End connection: Flanged.
Pressure range: PN16~PN25.
Working Medium: Water.
Accumulator Hydraulic Control Butterfly Valve Drawing:
