HQ41X Y Type Ball Check Valve, Cast iron, Ductile iron, WCB
Key Specifications / Features
China Y Type Ball Check Valve Manufacturer Shinjo Supplies HQ41X Y Type Ball Check Valve, Cast iron, Ductile iron, WCB.
Request a quote
Detail Information
Flanged Ball Check Valves uses the rubber covered roller as the disc, when, under the action of the medium, can roll up and down along with the integral sliding path inside the valve so as to open or close it. And it features by good tightness, silent close and no production of water hammer. The body is full water-flow path design, big flow, small resistance and the water head loss is smaller that of the swing type by 50. It is mountable vertically or horizontally and can be used for cold-water, hot-water, industrial and living sludge pipe networks, especially suitable for the submersible sludge pump. The medium temperature:0 - 80 °C.
Specifications
| Model | PN(MPa) | Casting Test Pressure (MPa) | Seal Test Pressure (MPa) | Materials of Body, Bonnet |
| HQ41X-10 | 1.0 | 1.5 | 1.1 | GG 25 / GGG 40 |
| HQ41X-16 | 1.6 | 2.4 | 1.76 |

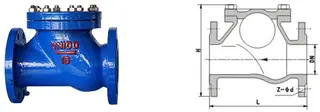

Dimensions
| DN (mm) | L | D | D1 | D2 | Z-Φd | H |
| 50 | 180 | 160 | 125 | 100 | 4-18 | 185 |
| 65 | 200 | 180 | 145 | 120 | 4-18 | 210 |
| 80 | 260 | 195 | 160 | 135 | 4-18/8-18 | 245 |
| 100 | 300 | 215 | 180 | 155 | 8-18 | 280 |
| 125 | 350 | 245 | 210 | 185 | 8-18 | 335 |
| 150 | 400 | 280 | 240 | 210 | 8-23 | 400 |
| 200 | 500 | 335 | 295 | 265 | 8-23/12-23 | 495 |
| 250 | 600 | 390/405 | 350/355 | 320 | 12-23/12-25 | 600 |
| 300 | 700 | 440/460 | 400/410 | 375 | 12-23/12-25 | 715 |
| 350 | 800 | 500/520 | 460/470 | 435 | 16-23/16-25 | 820 |
