Hydraulic Ball Valve, ASME B16.34, SS 316L, DN10, PN500, BSP

The Hydraulic Ball Valve Supplier in China offers a high-quality ball valve designed in accordance with ASME B16.34 standards. This valve is constructed from stainless steel SS 316L, ensuring excellent corrosion resistance and durability. With a nominal diameter of DN10 (3/8 inch) and a pressure rating of PN500, it is suitable for high-pressure applications. The valve features BSP (British Standard Pipe) threaded ends for easy installation and is operated via a lever for quick and reliable control.

Product Name: Hydraulic Ball Valve
Design Standard: ASME B16.34
Body Material: Stainless Steel SS 316L
Size: DN10, 3/8 Inch
Pressure: PN500
End Connection: BSP Threaded
Operation: Lever
Medium: hydraulic Oil or others
Temperature Range: -40°C to 121°C

The KHB series of hydraulic high-pressure ball valves are designed for applications requiring a working pressure exceeding 6000 PSI. These valves operate by rotating 90 degrees around the ball core to open or close. They are forged under high pressure, ensuring a robust and durable body. The valves feature a CFW seal as the primary sealing component, with initial sealing provided by a stainless steel disc spring gasket. As the medium pressure increases, the sealing performance of the packing is further enhanced, resulting in exceptional self-sealing capabilities. All components are treated for high strength, and each valve undergoes non-destructive testing and pressure testing to ensure safety and compliance. These valves are suitable for ultra-high pressure liquids, gases, or their mixtures, making them ideal for industries such as ultra-high pressure test benches, pneumatic pumps, hydraulic pumps, and deep-sea detectors. They offer reliable performance and ease of use.

Technical Specification

» Product: KHB series hydraulic Ball Valve
» Size Range: 1/8-4 Inch (Forged Items)
» Temperature Range: -40°F to 250°F (-40°C to 121°C)
» Pressure Rating: 6000-20000 PSI
» Materials: Carbon Steel, Alloy Steel, Stainless Steel, Duplex Steel & Other
» Ends Connections: BSP and NPT thread
» Design and Manufacture: ASME B16.34, API 6D
» Face to face (end to end): ANSI B16.10
» Test and Inspection: API 598
» Threaded Ends to ASME B1.20.1

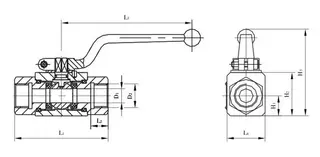

Structure Diagram

Dimensions (mm)
