SS 304 Hydraulic Ball Valve, ASME B16.34, DN20, Male Threaded

This stainless steel hydraulic ball valve from a leading China supplier is designed in compliance with ASME B16.34 standards. It features a durable SS 304 body, sized at DN20 (3/4 inch), and is equipped with male threaded ends for easy installation. The valve is operated via a manual lever for quick and reliable flow control, making it ideal for hydraulic and general industrial applications requiring corrosion resistance and tight shutoff.

Product Name: SS 304 Hydraulic Ball Valve
Design Standard: ASME B16.34
Body Material: Stainless Steel SS 304
Size: DN20, 3/4 Inch
Pressure: Custom
End Connection: Male Threaded
Operation: Lever
Medium: hydraulic Oil or others
Temperature Range: -40°C to 121°C

The CJZQ series externally threaded hydraulic ball valve is designed for controlling the flow and shut-off of hydraulic oil in hydraulic pipelines. This type of valve is characterized by low flow resistance, reliable sealing, easy operation, and a refined appearance.
The valve mainly consists of a valve body, ball, stem, handle, and sealing components. The valve body is made from forged steel and features surface treatments such as chrome plating and yellow zinc plating for enhanced durability and corrosion resistance.
The CJZQ hydraulic ball valve allows for quick opening and closing. Its stem seal is highly reliable, since the stem only rotates during operation, the sealing packing is less prone to wear. Additionally, the reverse sealing force on the stem increases with the pressure of the medium, ensuring enhanced sealing performance under high-pressure conditions.

Technical Specification

» Product: KHB series hydraulic Ball Valve
» Size Range: 1/8-4 Inch (Forged Items)
» Temperature Range: -40°F to 250°F (-40°C to 121°C)
» Pressure Rating: 6000-20000 PSI
» Materials: Carbon Steel, Alloy Steel, Stainless Steel, Duplex Steel & Other
» Ends Connections: BSP and NPT thread
» Design and Manufacture: ASME B16.34, API 6D
» Face to face (end to end): ANSI B16.10
» Test and Inspection: API 598
» Threaded Ends to ASME B1.20.1

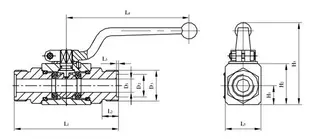

Structure Diagram

Dimensions (mm)
