EN 1.0619 Gate Valve, DIN 3352 F4, DN80, PN16, 3 IN, BB, RF

The China EN 1.0619 Gate Valve Factory produces high-quality wedge gate valves designed for industrial use. These valves feature a carbon steel body, conforming to DIN 3352 F4 standards, ensuring durability and reliability. They have a nominal diameter of DN80 (3 inches) and a pressure rating of PN16 (Class 150 LB). The bolted bonnet design facilitates easy maintenance and inspection, while the RF (Raised Face) flanged ends provide secure and leak-free connections.

Product Name: EN 1.0619 Gate Valve, Bolted Bonnet
Type: Wedge Gate Valve
Design Standard: DIN 3352 F4
Body Material: EN 1.0619
Size: DN80, 3 Inch
Pressure: PN16, Class 150 LB
End Connection: RF Flanged
Operation: Handwheel
Medium: Water, Oil, Gas, etc
Temperature Range: -29°C to 595°C

The Wedge Gate Valves are meticulously designed and manufactured to ensure that the leakage of volatile organic compounds (VOCs) is less than 100 parts per million (ppm). Extensive baseline laboratory testing, including both static and cycle tests, has been conducted to establish the critical design parameters necessary for achieving low-emission sealing in the stem packing seal area and the bonnet gasket sealing area. An in-house testing procedure has been developed and is periodically performed to ensure that the standard product design and manufacturing criteria consistently result in the Wedge Gate Valve meeting a maximum of 100 ppm VOC leakage before shipment.

Technical Specification

» Type: Wedge Gate Valve
» Nominal Diameter: DN50-DN1000
» Design Pressure: PN6-PN16
» Body/Bonnet/Wedge: Cast Steel (EN 1.0619), Stainless Steel (EN 1.4308; EN 1.4408), Alloy Steel EN 1.7335 (WC6)
» Stem: X20Cr13 or EN 1.4021, Stainless Steel (EN 1.4308; EN 1.4408)
» Seat: 13Cr, 18Cr, Stellite
» End Connections: RF Flange, Groove Flange, BW
» Operation: Handwheel, Bevel Gear, Electric, Pneumatic
» Structural Formation: BB-BG-OS & Y
» Design Standard: DIN 3352
» Face-to-Face Dimension: According to EN 558-1 15 (DIN 3202 F5 series)
» Flange Ends: DIN 2543 to 2547, EN 1092-1, GOST 12815, GOST 12819
» Butt Welded End: EN 12627
» Test & Inspection: DIN 3230

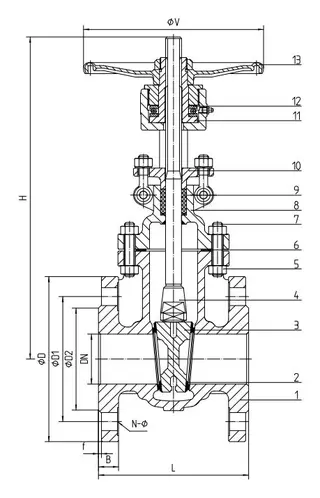

Structural Diagram

Product Features

» Anti-friction ball thrust bearing: Reduces friction between mating parts to ensure smooth operation
» Grub screw: Secures yoke nut in the bonnet
» Grease nipple: Supplies lubricant to the mating parts
» OS&Y, Outside Stem and Yoke
» Metal-sealed, Trim # 1, #5, #8, #10 and etc.
» Optional Locking Device or Stem Extension
» Optional Direct Mounting to ISO 5211
» Full Port
