5000 PSI Oil Field Check Valve, ASTM A216 WCB, 2 IN, NPT, FP

The 5000 PSI Oil Field Check Valve Plant offers a robust Full Port Swing Check Valve designed for high-pressure applications. This valve features a cast carbon steel body made from ASTM A216 WCB material, ensuring durability and reliability in demanding oil field environments. With a 2-inch diameter (DN50), it provides a full port design for minimal pressure drop and maximum flow efficiency. The valve is equipped with NPT threaded end connections, facilitating easy installation and maintenance.

Product Name: 5000 PSI Oil Field Check Valve, Full Port
Type: Swing Check Valve
Body Material: Carbon Steel ASTM A216 WCB
Size: 2 Inch, DN50
Pressure: 5000 PSI
End Connection: NPT Threaded
Medium: Water, Oil, Gas, etc
Temperature Range: -20°C to 80°C

This top-entry swing check valve is constructed from durable materials such as ductile iron, carbon steel, and aluminum bronze, and is available in sizes ranging from 1 Inch to 4 Inches. It features standard stainless steel discs for enhanced durability. The Series D model has been redesigned to facilitate easier bonnet removal. Thanks to its patented Hinge-Works feature, this valve offers an extended service life. It is well-suited for a variety of industrial applications, including hydraulics, pneumatics, pumps, and plumbing systems. The Oil Field Check Valve is particularly ideal for oil and gas production lines where backflow prevention is essential. The swing check valve is designed for simplicity and ease of repair, with top-entry access to the valve internals. Its primary function is to prevent the backflow of fluid in the pipeline.

Technical Specification

» Product: Oil Field Swing Check Valve
» Size Ranges: NPS 1-4 Inch (DN25-DN100)
» 2 Inch, 3 Inch with plug on the cap
» 1 Inch without plug on the Cap
» Pressure: 3000 to 5000 PSI WP
» Body Material: ASTM A216 WCB
» Disc material: SS 304
» Seat and Seal: Viton
» Port: Full Open
» NACE MR-0175 Compliance
» Inspection and Test Acc. to API 598

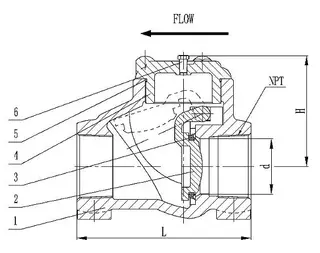

Structural Diagram

Main Parts and Materials

Main Dimensions (mm)
