Triple Eccentric Butterfly Valve, EN 593, DN150, PN16, WCB
Key Specifications / Features
DN150 PN16 triple eccentric butterfly valve is made according to EN 593 standard. The valve body is made of ASTM A216 WCB. It has the structural characteristics of triple eccentricity, two-way one-to-one ratio. Its connection mode is wafer. And it has turbine operation mode.
Request a quote
Quick Detail
| Type | Triple Eccentric Butterfly Valve |
| Size | DN150 |
| Pressure | PN16 |
| Operation | Turbine Operation |
| Body Material | ASTM A216 WCB |
| Design Norm | EN 593 |
| Face to Face Dimensions | EN 558 |
| Flanged Ends | EN 1092-1 |
| Test & Inspection Code | EN 12266-1 |
| Temperature | -29°C - 300°C |
| Applicable Medium | Water, Oil and Gas |
Detail Information
On this page
EN 593 Triple Eccentric Butterfly Valve, DN150, PN16, ASTM A216 WCB Body, Flanged.
2. Sturdy structure, high sealing performance effectively prevents medium leakage, reduces environmental pollution, and meets environmental protection requirements.
Features
1. Designed with high sealing performance and reliable leak prevention function, ensuring the safe and stable operation of the system;2. Sturdy structure, high sealing performance effectively prevents medium leakage, reduces environmental pollution, and meets environmental protection requirements.

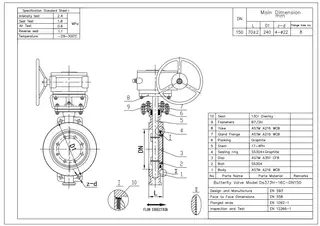

Technical Drawing

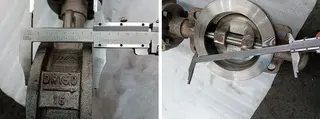

Dimension Checking

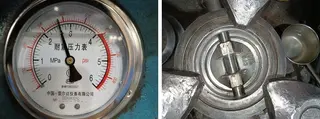

Pressure Testing

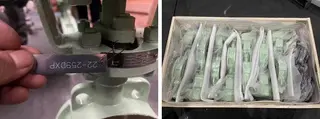

Nameplate & Packing

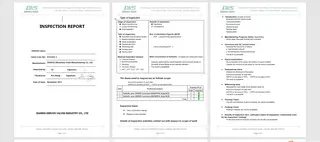

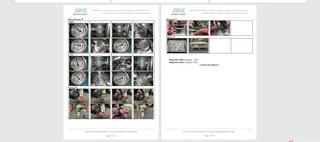

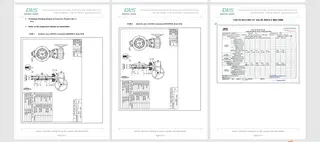

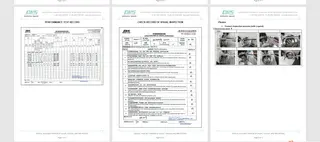

Inspection Report
