Reduce Bore Trunnion Ball Valve, API 6D, 150 LB, B148 C95800

Name: Reduce Bore Trunnion Ball Valve, API 6D, 150 LB, B148 C95800
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

8 Inch X 6 Inch 150 LB ball valve is made according to API 6D standard. The valve body is made of ASTM B148 C95800. It has the structural characteristics of fixed ball, reduced diameter, two-piece, anti-fire, anti-static, anti-flying stem design. Its connection mode is FF flange. And it has worm gear operation mode.

Request a quote

Quick Detail

Product Description

Type	Ball Valve
Size	8 Inch X 6 Inch
Pressure	150 LB
Connection	FF
Operation	Worm Gear
Body Material	ASTM B148 C95800
Design Norm	API 6D
End to End	ASME B16.10
End connection	ASME B16.5
Test & Inspection Code	API 6D
Temperature	-10 - 75°C
Applicable Medium	Water, Oil and Gas

Detail Information

8 Inch X 6 Inch 150 LB Trunnion Mounted Ball Valve FF API 6D Worm Gear

Features

1. Low fluid resistance, simple structure, small volume, and lightweight;

2. Easy to operate, quick to open and close, tight and reliable, with good sealing performance.

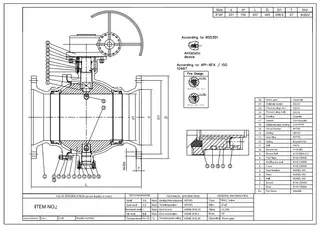

Technical Drawing
