EN 10213 Globe Valve, 1.0619, DN100, PN40, BS EN 13709
Key Specifications / Features
DN100 PN40 globe valve is made according to BS EN 13709 standard. The valve body is made of EN 10213 1.0619. It has the structural characteristics of bolt cover, rising stem and single disc. Its connection mode is RF. And it has hand wheel operation mode.
Request a quote
Quick Detail
Product Description
| Type | Globe valve |
| Size | DN100 |
| Pressure | PN40 |
| Connection | RF |
| Operation | Hand Wheel |
| Body Material | EN 10213 1.0619 |
| Design Norm | BS EN 13709 |
| Face to Face Dimensions | BS EN 558-1 |
| Flange Ends Dimensions | BS EN 1092-B1 |
| Test & Inspection Code | BS EN 12266 |
| Temperature | -29 ~ 120°C |
| Applicable Medium | Water, Oil and Gas |
Detail Information
EN 13709 Globe valve RF Connection DN100 PN40 Body 1.0619
Features
1. Simple structure, convenient manufacturing and maintenance, small working stroke, and short opening and closing time;
2. Good sealing performance, low friction between sealing surfaces, and long service life.

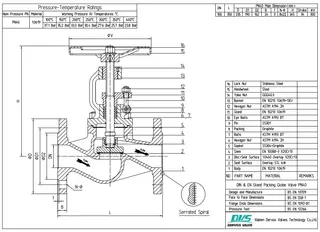

Technical Drawing

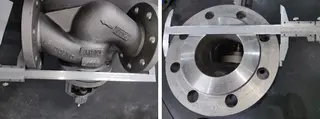

Dimension Checking

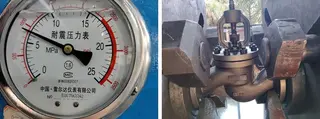

Pressure Testing
Painting

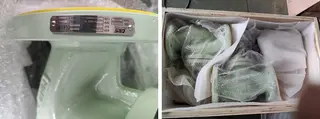

Nameplate & Packing

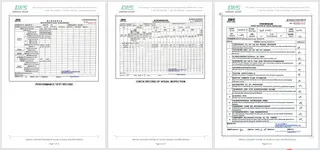

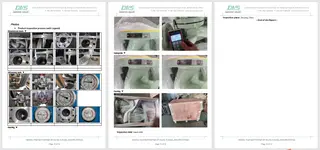

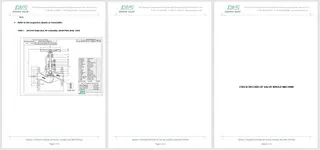

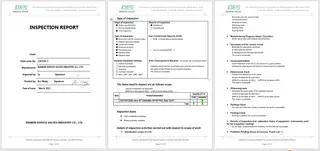

Inspection report
Features
1. Simple structure, convenient manufacturing and maintenance, small working stroke, and short opening and closing time;
2. Good sealing performance, low friction between sealing surfaces, and long service life.
Technical Drawing
Dimension Checking
Pressure Testing
Painting
Nameplate & Packing
Inspection report
