ASTM A995 4A Flat Gate Valve, 2 Inch, 1500 LB, API 6D, RTJ
Key Specifications / Features
2 Inch 1500 LB flat gate valve is made according to API 6D standard. The valve body is made of ASTM A995 4A. It has the structural characteristics of BB, OS & Y, with diversion holes. Its connection mode is RTJ. And it has hand wheel operation mode.
Request a quote
Quick Detail
Product Description
| Type | Flat Gate Valve |
| Size | 2 Inch |
| Pressure | 1500 LB |
| Connection | RTJ |
| Operation | Hand Wheel |
| Body Material | ASTM A995 4A |
| Design Norm | API 6D |
| End to End | API 6D |
| End connection | ASME B16.5 |
| Test & Inspection Code | API 6D |
| Temperature | -29 - 120°C |
| Applicable Medium | Water, Oil and Gas |
Detail Information
2 Inch 1500 LB Flat Gate Valve, RTJ Connection, Body A995 4A, API 6D
Features
1. Under proper use and installation conditions, flat gate valves can achieve zero leakage, ensuring the safe operation of pipeline systems;
2. Flat gate valves are suitable for various media such as water, sewage, air, steam, and oil, and are widely used in industries such as water treatment, chemical, petroleum, and food.

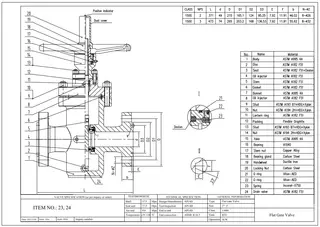

Technical Drawing

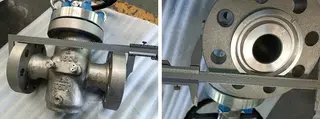

Dimension Checking

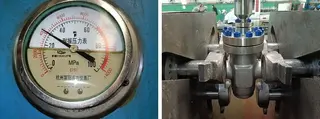

Pressure Testing

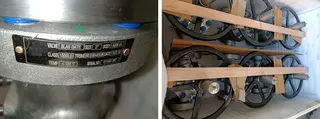

Nameplate & Packing

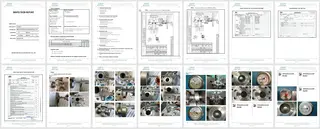

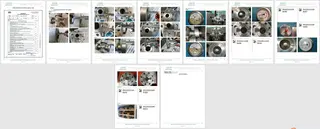

Inspection report
Features
1. Under proper use and installation conditions, flat gate valves can achieve zero leakage, ensuring the safe operation of pipeline systems;
2. Flat gate valves are suitable for various media such as water, sewage, air, steam, and oil, and are widely used in industries such as water treatment, chemical, petroleum, and food.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection report
