ASTM A352 LCB Dual Plate Check Valve, 16 IN, 150 LB, API 594
Key Specifications / Features
16 Inch 150 LB check valve is made according to API594 standard. The valve body is made of ASTM A352 LCB+STL. It has the structural characteristics of dual plate. Its connection mode is Lug (UNC threaded hole, RF 125-250AARH).
Request a quote
Quick Detail
Product Description
| Type | Check Valve |
| Size | 16 Inch |
| Pressure | 150LB |
| Connection | Lug |
| Body Material | ASTM A352 LCB+STL |
| Design Norm | API594 |
| Face to Face Dimension | API594 |
| End Type | ASME B16.5 |
| NACE Material If Request | NACE MR0103 |
| Test & Inspection Code | API 598 |
| Temperature | -46 ~ 300°C |
| Applicable Medium | Water, Oil and Gas |
Detail Information
16 Inch 150 LB Dual Plate Check Valve Lug Type LCB API 594
Features
1. Small size, lightweight, compact structure, and convenient maintenance;
2. Safe and convenient, suitable for installation in both horizontal and vertical directions.

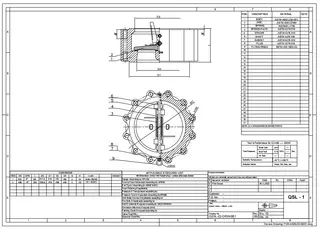

Technical Drawing

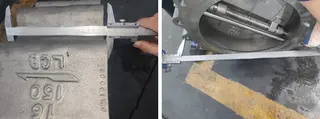

Dimension Checking

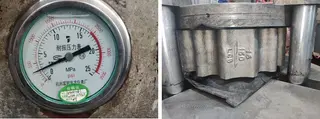

Pressure Testing

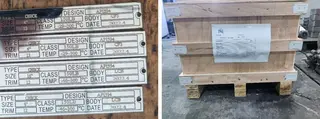

Nameplate & Packing

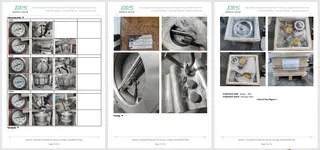

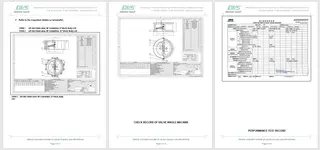

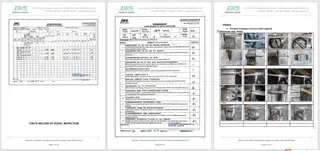

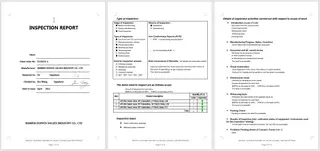

Inspection report
Features
1. Small size, lightweight, compact structure, and convenient maintenance;
2. Safe and convenient, suitable for installation in both horizontal and vertical directions.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection report
