ASTM A351 CF8 Bellow Seal Globe Valve, 2 Inch, 600 LB, BS 1873, RF

Name: ASTM A351 CF8 Bellow Seal Globe Valve, 2 Inch, 600 LB, BS 1873, RF
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

2 Inch 600 LB globe valve is made according to BS1873 standards. The valve body is made of ASTM A351 CF8+STL. It has the structural characteristics of a body cover bolt connection. Its connection mode is RF. And it has hand wheel operation mode.

Request a quote

Quick Detail

Product Description

Type	Bellow Seal Globe Valve
Size	2 Inch
Pressure	600 LB
Connection	RF
Operation	Hand Wheel
Body Material	ASTM A351 CF8+STL
Design Norm	BS 1873
Pressure Temperature Rating	API 598-2016
Flange End Design	ASME B16.5-2020
End-to-End Dimension	ASME B16.10-2022
Applicable Medium	Water, Oil and Gas

Detail Information

2 Inch 600 LB Bellow Seal Globe Valve RF CF8 BS 1873 Hand Wheel

Features

1. The characteristics of bellow make the valve opening and closing process relatively stable, reducing the occurrence of water hammer and helping to extend the service life of pipelines and valves;

2. The elasticity and adjustability bellow can provide good sealing effects and adapt to different pressure and temperature conditions.

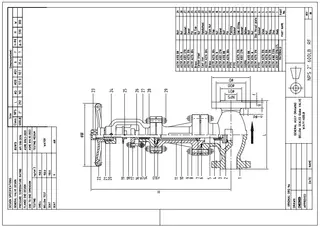

Technical Drawing
