ASTM A216 WCB Wafer Butterfly Valve, 10 IN, 150 LB, API 609
Key Specifications / Features
10 Inch 150 LB butterfly valve is made according to API 609 standard. The valve body is made of ASTM A216 WCB. It has the structural characteristics of midline type. Its connection mode is wafer type. And it has turbine operation mode.
Request a quote
Quick Detail
Product Description
| Type | Butterfly Valve |
| Size | 10" |
| Pressure | 150LB |
| Connection | Wafer |
| Operation | Turbine Operation |
| Body Material | WCB |
| Design Norm | API 609 |
| Face to Face Dimension | API 609 |
| Flange Dimension | ASME B16.5 |
| Test & Inspection Code | API 598 |
| Applicable Medium | Water, Oil and Gas |
Detail Information
API 609 Butterfly Valve Wafer Connection 10 Inch 150 LB Body WCB
Features
1. Small and lightweight, easy to disassemble and repair, and can be installed in any position;
2. Simple and compact structure with low operating torque.

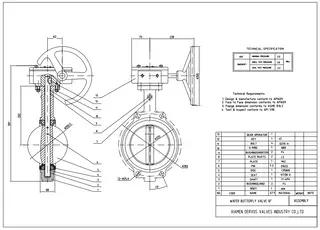

Technical Drawing

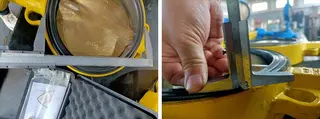

Dimension Checking

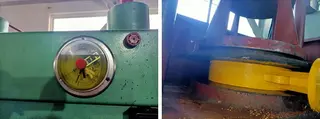

Pressure Testing

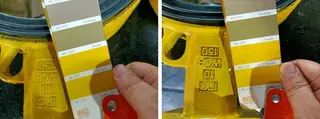

Painting

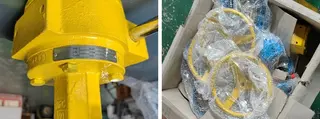

Nameplate & Packing

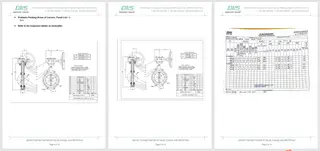

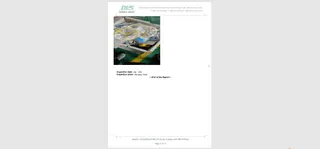

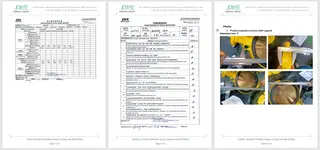

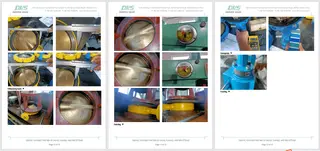

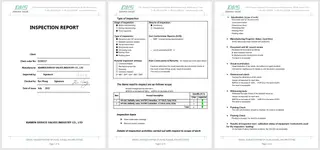

Inspection report
Features
1. Small and lightweight, easy to disassemble and repair, and can be installed in any position;
2. Simple and compact structure with low operating torque.
Technical Drawing
Dimension Checking
Pressure Testing
Painting
Nameplate & Packing
Inspection report
