ASTM A216 WCB Trunnion Ball Valve, 3 Inch, 600 LB, API 6D, RF
Key Specifications / Features
3 Inch 600 LB ball valve is made according to API 6D standard. The valve body is made of ASTM A216 WCB. It has the structural characteristics of split type, fixed ball, full bore, fireproof, anti-static, anti-flying valve stem. Its connection mode is RF.
Request a quote
Quick Detail
Product Description
| Type | Ball Valve |
| Size | 3 Inch |
| Pressure | 600 LB |
| Connection | RF |
| Body Material | ASTM A216 WCB |
| Design Norm | API 6D |
| Face to Face | ASME B16.10 |
| End Flange Dimension | ASME 16.5 |
| Test & Inspection Code | API 598 |
| Fire Safe | API 607, Anti-static, Anti-Blowout Stem |
| Temperature | -29 - 150°C |
| Applicable Medium | Water, Oil and Gas |
Detail Information
API 6D 3 Inch 600 LB Trunnion Mounted Ball Valve RF WCB
Features
1. Convenient operation, fast opening and closing, and easy remote control;
2. Good sealing performance and widely used in vacuum systems.

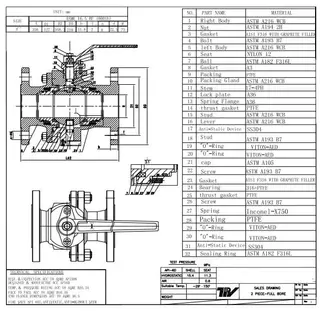

Technical Drawing

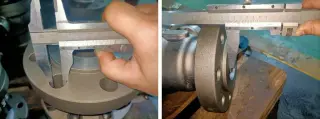

Dimension Checking

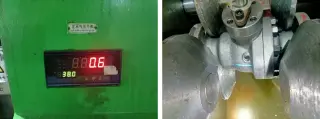

Pressure Testing

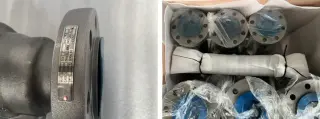

Nameplate & Packing

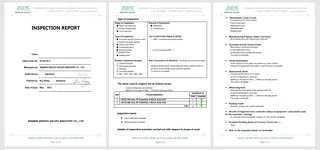

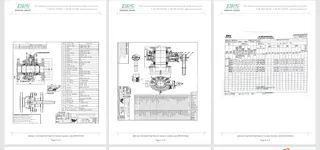

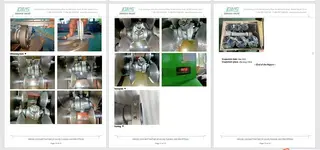

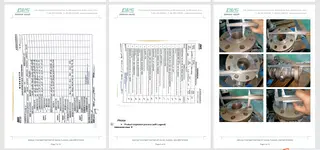

Inspection report
Features
1. Convenient operation, fast opening and closing, and easy remote control;
2. Good sealing performance and widely used in vacuum systems.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection report
