ASTM A216 WCB Sleeved Plug Valve, DN50, PN10, API 599, RF
Key Specifications / Features
DN50 PN10 plug valve is made according to API 599 standard. The valve body is made of ASTM A216 WCB. It has the structural characteristics of ferrule type, and reduced diameter. Its connection mode is RF. It has a lever operation mode.
Request a quote
Quick Detail
Product Description
| Type | Plug Valve |
| Size | DN50 |
| Pressure | PN140 |
| Connection | RF |
| Operation | Lever |
| Body Material | ASTM A216 WCB |
| Design Norm | API 599 |
| End Flange Dimensions | EN1092-1 |
| Face to Face | ASME B16.10 |
| Pressure-Temp | ASME B16.34 |
| Test & Inspection Code | API 598 |
| Temperature | ≤120°C |
| Applicable Medium | Water, Oil and Gas |
Detail Information
DN50 PN10 Sleeved Plug Valve RF WCB API 599 Lever
Features
1. Flow resistance is usually small and can provide higher flow rates;
2. Materials can be selected according to needs, making them suitable for various media, including liquids, gases, and corrosive media.

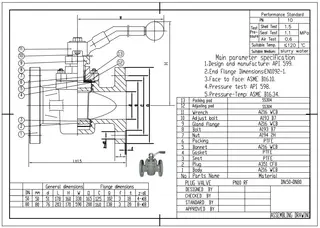

Technical Drawing

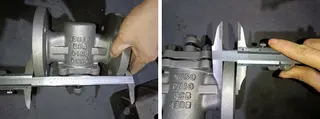

Dimension Checking

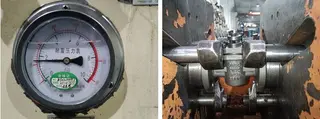

Pressure Testing

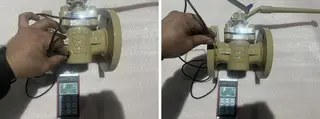

Painting

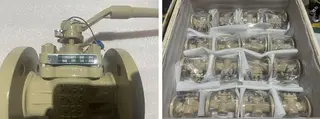

Nameplate & Packing

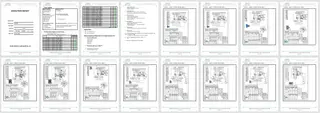

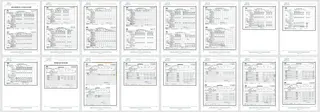

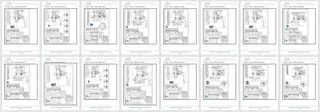

Inspection report
Features
1. Flow resistance is usually small and can provide higher flow rates;
2. Materials can be selected according to needs, making them suitable for various media, including liquids, gases, and corrosive media.
Technical Drawing
Dimension Checking
Pressure Testing
Painting
Nameplate & Packing
Inspection report
