ASTM A182 F304L Gate Valve, 1/2 Inch, CL1500, API 602

Name: ASTM A182 F304L Gate Valve, 1/2 Inch, CL1500, API 602
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Stainless Steel ASTM A182 F304L Gate Valve Maker: Stainless Steel Gate Valve, ASTM A182 F304, ASTM A182 F304L, 1/2 Inch, CL1500, API 602, OS&Y.

Request a quote

Detail Information

1/2 Inch 1500LB Stainless Steel Gate Valve API 602

Quick Detail

Type	Gate Valve
Size	1/2 Inch
Design Pressure	1500 LB
Construction	B.B., Solid Wedge, Renewable Seat, OS&Y
Connection Type	FNPT
Operation Type	Handwheel
Body Material	ASTM A182 F304, ASTM A182 F304L
Wedge Material	ASTM A182 F304
Stem Material	ASTM A276-304
Design Code	API 602
End Connection	ANSI B16.11
Test & Inspection	API 598
Medium	Water, Oil and Gas
Origin	China

Features
--Superior flow rates & small friction loss
--Comparatively shorter end to end dimension
--Low torque value for closing and opening the valve
--Flexible wedge for better seating and ease of operation
--Smooth finish and superior sealing for seat face
--Optimized wedge design for minimized seat leakage
--Every valve is manufactured with a specific number on the body for traceability
--Excellent performance of stem packing for low fugitive emissions

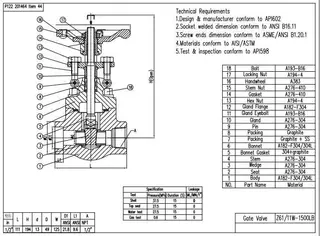

Technical Drawing

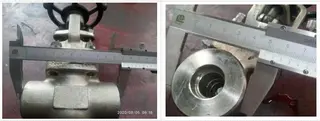

Dimension Check

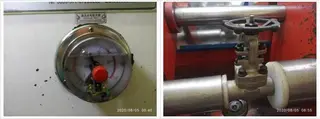

Witnessing Tests

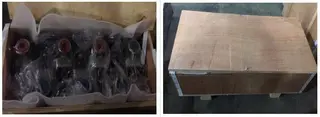

Packing

In Kelly, we make sure-
Every valve is clean and dry.
What do we do?
-Clean the valve before packing
-Add anti-rust oil
-Add flange cover

No damage to valves in delivery. How do we achieve this?
-Fix the valve with iron wire
-Separate the valve with soft material
-Layer the valve with plywood
Strongbox and clear shipping mark
