ASTM A105 Angle Type Globe Valve, 3 Inch, 600 LB, API 602
Key Specifications / Features
3 Inch 600 LB globe valve is made according to API 602 standard. The valve body is made of A105+STL. It has the structural characteristics of 90° and bolt cover. Its connection mode is welding flange RF. And it has handwheel operation mode.
Request a quote
Quick Detail
Product Description
| Type | Globe Valve |
| Size | 3 Inch |
| Pressure | 600 LB |
| Connection | RF |
| Operation | Handwheel |
| Body Material | ASTM A105+STL |
| Design Norm | API 602, ASME B16.34 |
| Face to Face | ASME B16.10 |
| Flange Dimension | ASME B16.5 |
| Material | AISI/ASTM |
| Test & Inspection Code | API 598 |
| Applicable Medium | Water, Oil and Gas |
Detail Information
3 Inch 600 LB Angle Type Globe Valve RF A105 API 602 Handwheel
Features
1. Good sealing performance, low friction between sealing surfaces, and long service life;
2. Simple structure, convenient manufacturing and maintenance, small working stroke, and short opening and closing time.

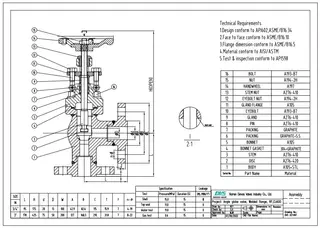

Technical Drawing

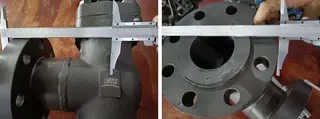

Dimension Checking

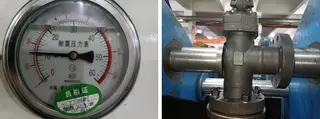

Pressure Testing

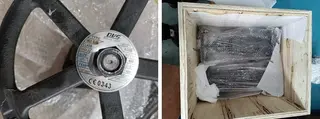

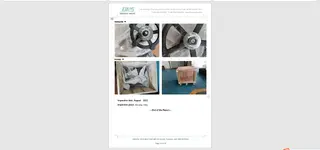

Nameplate & Packing

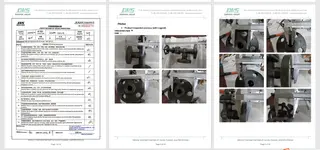

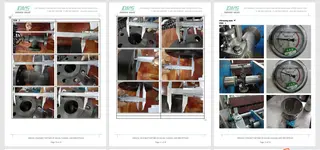

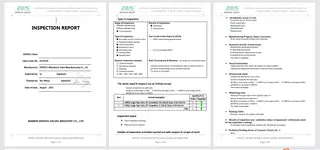

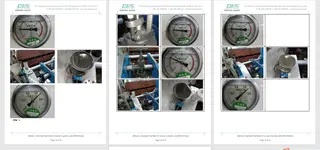

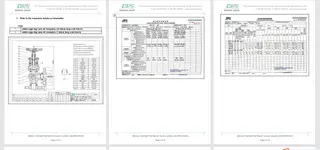

Inspection report
Features
1. Good sealing performance, low friction between sealing surfaces, and long service life;
2. Simple structure, convenient manufacturing and maintenance, small working stroke, and short opening and closing time.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection report
