ASME B16.34 Y Type Strainer, 1 IN, 150 LB, ASTM A182 F22
Key Specifications / Features
The 1-Inch 150 LB Y-Type Strainer is designed in compliance with the ASME B16.34 standard. The valve body is constructed from ASTM A182 F22 material, featuring a Y-shaped design with a bolted body and cover connection. The strainer is equipped with a socket weld (SW) connection.
Request a quote
Quick Detail
| Type | Y Type Strainer |
| Size | 1 Inch |
| Pressure | Class 150 LB |
| Connection | SW |
| Body Material | ASTM A182 F22 |
| Design Norm | ASME B16.34 |
| Socket Welded Dimension | ANSI B16.11 |
| Face to Face Dimension | MFR's Standard |
| Materials | AISI/ASTM |
| Test & Inspection Code | API 598 |
| Applicable Medium | Water, Oil and Gas |
Detail Information
On this page
ASME B16.34 Y Strainer, 1 Inch/DN25, Class 150 LB, ASTM A182 F22 Body, SW Connection.
Features
1. Engineered for easy disassembly and maintenance, minimizing downtime and lowering maintenance expenses.
2. Built with a robust structure and durable materials, ensuring a long service life and reducing the need for frequent replacements and associated costs.

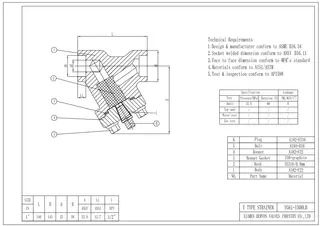

Technical Drawing

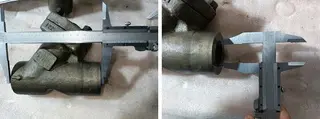

Dimension Checking

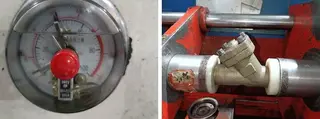

Pressure Testing

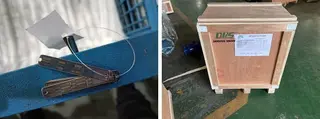

Nameplate & Packing

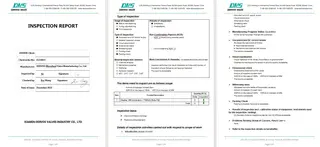

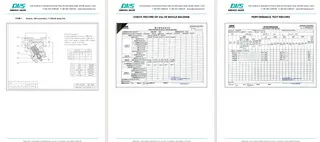

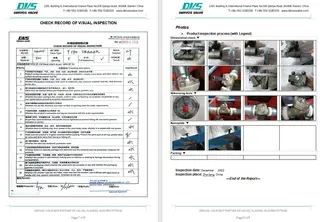

Inspection Report
