3-Piece Floating Ball Valve, ASME B16.34, A105, DN15, PN350

Name: 3-Piece Floating Ball Valve, ASME B16.34, A105, DN15, PN350
SKU: Kelly-BV-20241018-03
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

The DN15 PN350 3-piece floating ball valve is manufactured in compliance with the ASME B16.34 standard. Constructed from ASTM A105, it features a floating ball design with full bore, ensuring optimal flow. This valve is fire-resistant and anti-static for enhanced safety. It connects via F-NPT threads and operates with a lever mechanism for easy control.

Request a quote

Quick Detail

Type	3 Pieces Floating Ball Valve
Size	DN15
Pressure	PN350
Connection	F NPT
Operation	Lever
Body Material	ASTM A105
Design Norm	ASME B16.34
End to End Dimension	Manufacturer's Standard
Screwed End	ASME B1.20.1
Fire Safe Test	API 607
Test & Inspection Code	ISO 5208
Temperature	-29 ~ 150°C
Applicable Medium	Water, Oil and Gas

Detail Information

ASME B16.34 3-Piece Floating Ball Valves, ASTM A105, Lever Operation.

Features:

1. The floating ball design makes the valve compatible with various fluid media, including water, oil, gas, steam, and corrosive substances, making it ideal for industries like oil, natural gas, chemicals, and food processing.

2. When fully open, the valve allows unobstructed flow with minimal fluid resistance and virtually no pressure loss, making it perfect for piping systems requiring fast flow rates.

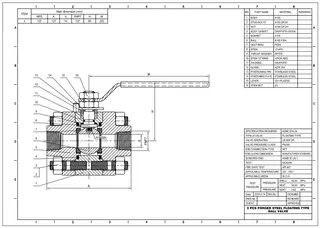

Technical Drawing
