3/4 Inch 300 LB Forging Gate Valve, ASTM A105N, API 602

Name: 3/4 Inch 300 LB Forging Gate Valve, ASTM A105N, API 602
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

3/4 Inch 300 LB Forging Gate Valve Manufacturer: Forged Gate Valves, BB, OSY, Solid Wedge, Full Bore, ASTM A105N, 3/4 Inch, 300 LB, API 602, Flanged End.

Request a quote

Quick Detail

3/4 Inch 300 LB Forging Gate Valve, Full Bore, A105N.

Type: Gate Valve.
Size: 3/4 Inch.
Design Pressure: Class 300 LB.
Construction: BB, OSY, Solid Wedge, Full Bore.
Connection: Flanged.
Design & Manufacture: API 602.
End to End: ASME B16.10.
Flange Dimension: ASME B16.5.
Test & Inspection: API 598.
Body Material: ASTM A105N.
Media: W.O.G.

Detail Information

Type	Gate Valve
Size	3/4 Inch
Design Pressure	300LB
Construction	BBV, OSY, Solid Wedge; Full Bore
Connection	Flanged
Design & Manufacture	API602
End to End	ASME B16.10
Flange Dimension	ASME B16.5
Test & Inspection	API598
Body Material	A105N
Media	W.O.G.

Design Features
-Outside Screw and Yoke(OS&Y)
-Two-Piece self-aligning packing gland
-Bolted bonnet with spiral-wound gasket
-Integral backseat

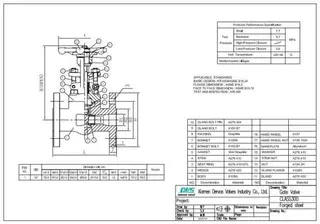

Technical Drawing

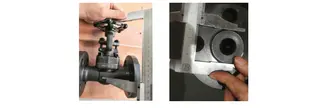

Dimension Check

Witnessing Tests

About Kelly
Xiamen Kelly Valves Industry Co.,Ltd (stock code 861601), founded in June 2008, is a one-stop industrial valves supplier integrated of R&D, manufacture, resource integration, and trade service.

For 13 years, Kelly has been committed to finding solutions for industrial needs and providing professional service for both general and specialized valves.

Why choose Kelly as your partner?

One-Stop Service
Here in Kelly, we can provide you with a one-stop service through our complete product list, which means, you don’t need to search for various suppliers for different types of valves, and it will surely save your time and energy. All you need to do is choose Kelly and we will provide complete solutions to you.

On-Time Delivery
Kelly keeps a high percentage of on-time delivery. Why could we achieve that? Our purchasing team follows the order very closely. Plus, our QC and salesperson will also do a monitoring job on each order.

Strict Quality Control
All the members of the QC team are very experienced and professional. For each order, they will check the raw material, manufacturing process, do the pressure testing on shell and seal, and check the valve dimension per assembly drawing. Lastly, they will inspect the painting and packaging.

Product Range

Kelly' forged steel valve range includes carbon steel, alloys, stainless steel, and exotic alloys. Valve types include gate, globe and check with ratings of 150 lbs. to 4500 lbs.
