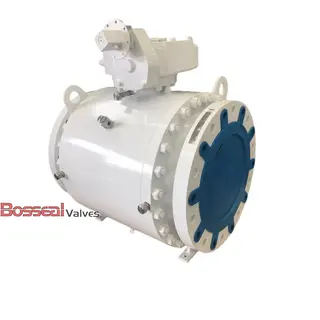

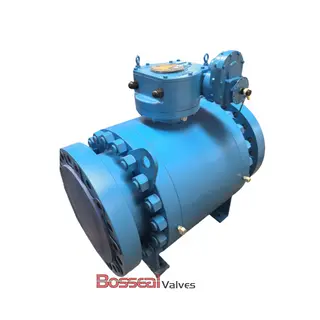

Soft Seated Ball Valve, API 6A, A694 F60, 5-1/8 IN, 3000 PSI

As a leading soft seated ball valve manufacturer in China, we offer high-performance valves built to API 6A standards. Our 5-1/8 inch ball valves are rated for 3000 PSI and feature a robust body made from AISI 4130 or ASTM A694 F60 alloy steel, ensuring strength and durability. Designed with a bolted bonnet for secure sealing, these valves are equipped with Inconel trim for excellent corrosion resistance. Seat options include PEEK, TCC, or STL to meet various service demands. Gear operation allows for smooth, precise control, making them ideal for critical oil and gas applications.

Valve Description:
181104030 API 6A Ball Valve
Design Standard: API 6A
Structure: Bolted Bonnet
Bore Type: Full Bore or Reduced Bore
Operation: Lever/Gear/Bare Shaft
Nominal Size: 1-13/16 Inch to 11 Inch
Nominal Class: 2000 PSI-15000 PSI
Body Material: AISI 4130/ASTM A694 F60/ASTM A694 F65
Trim Material: AISI 4140/F51/17-4PH/Inconel Trim
Seat Insert: PEEK or Hardfaced
Face to Face: ASME B16.10/MFG'S
End Connection: RTJ, BW, and Hub
Test and Inspection: API 6A
Key Features: Double Block&Bleed(DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection, Low Emission(Optional), DIB (Optional), full welded bonnet, SPE and DPE Seat Design (SPE x SPE, DIB-1, DIB-2), Bubble-Tight Shut-Off

Material Class: AA, BB, CC, DD, EE, FF, HH
Temperature Class: L, N, P, S, T, U, V, X, Y
Specification: PSL1 - PSL3G
Performance: PR1, PR2

Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1-13/16 Inch - 11 Inch
Pressure Range: 2000 PSI - 15000 PSI
End Connection: RF, RTJ, BW, HUB
Working Temperature: -26°C - +150°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator

Design Features:
Anti-blowout stem design for enhanced safety
Bolted body with 2-piece and 3-piece construction
SPE and DPE seat configurations (SPE x SPE, DIB-1, DIB-2)
Available with metal-to-metal or soft seat options
Double block and bleed capability
Integrated anti-static devices
Ensures bubble-tight shutoff for reliable sealing
