API 6A Ball Valve, 1-13/16 IN, 2000 PSI, Bolted Bonnet, RTJ

As a leading China bolted bonnet manufacturer, we offer valves designed to API 6A standards for reliable performance in demanding applications. This 1-13/16 inch valve is rated for 2000 PSI working pressure and features an RTJ end connection for secure sealing. The robust body is available in high-quality materials including 4130, ASTM A694 F60, and ASTM A694 F65, ensuring excellent strength and durability. Operated by a lever for easy and precise control, this bolted bonnet valve is ideal for oil and gas, petrochemical, and industrial service.

Valve Description:
181104001 API 6A Ball Valve
Design Standard: API 6A
Structure: Bolted Bonnet
Nominal Size: 1-13/16 Inch to 11 Inch
Nominal Class: 2000 PSI-15000 PSI
Operation: Lever
Body Material: AISI 4130/ASTM A694 F60/ASTM A694 F65
Trim Material: AISI 4140/F51/17-4PH/Inconel Trim
Seat Insert: PEEK or Hardfaced
Face to Face: ASME B16.10/MFG'S
Test and inspection: API 6A
Bore Type: Full Bore or Reduced Bore
End Connection: RTJ, BW, and Hub
Key Features: Double Block&Bleed(DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection, Low Emission(Optional), DIB (Optional), full welded bonnet, SPE and DPE Seat Design (SPE x SPE, DIB-1, DIB-2), Bubble-Tight Shut-Off

Material Class: AA, BB, CC, DD, EE, FF, HH
Temperature Class: L, N, P, S, T, U, V, X, Y
Specification: PSL1 - PSL3G
Performance: PR1, PR2

Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1-13/16 Inch - 11 Inch
Pressure Range: 2000 PSI - 15000 PSI
End Connection: RF, RTJ, BW, HUB
Working temperature: -26°C - +150°C

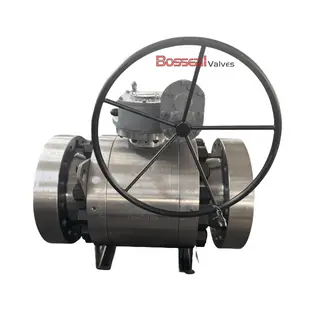

Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator

Design Features:

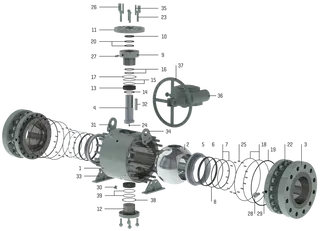

Bolted body with 2-piece and 3-piece construction
Double block and bleed capability
SPE and DPE seat configurations (SPE x SPE, DIB-1, DIB-2)
Available with metal-to-metal or soft seat options
Anti-blowout stem design for enhanced safety
Integrated anti-static devices
Ensures bubble-tight shutoff for reliable sealing
