Wheeled Rotating Grabs Excavator, Grab Max Open 1500 mm
Key Specifications / Features

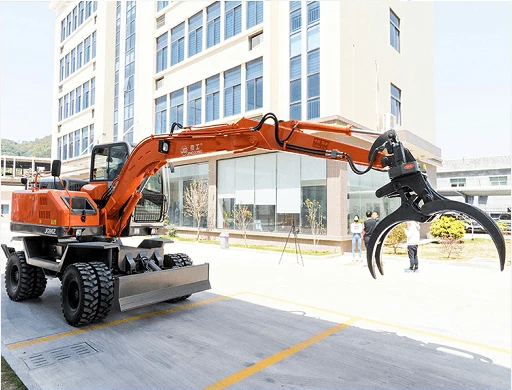

Explore our Wheeled Rotating Grabs Excavator, a precision tool designed for exceptional performance. Weighing 6.5 tons and equipped with a 50 kW engine, this excavator delivers both power and finesse. With a remarkable Max Radius Weight capacity of 600 kg, it ensures efficient lifting operations. Its compact Tail Swing Radius of 1775 mm ensures agility in tight spaces. The Grab Max Open of 1500 mm enhances its versatility, making this excavator the perfect choice for a wide range of applications requiring precision and strength.
Request a quote
Detail Information
Operating Weight: 6500 kg, 6.5 Tons
Engine Power: 50 kw
Tail Swing Radius: 1775 mm
Walking Speed: 36 km/h
Grab Max Opening Width: 1250 - 1500 mm
Grab Min Opening Width: 200 - 300 mm
Max Radius Weight Capacity: 500 - 600 kg
Gradeability: 30 °/58%
| SPECIFICATION | |
| Range Of Operation | |
| Boom Length | 3475~3670mm |
| Arm Length | 1860mm |
| Max Radius of Capture | 6000mm |
| Grab The Biggest Opening Width | 1250-1500mm |
| Grab The Minimum Opening Width | 200-300mm |
| Maximum Radius Weight Capacity | 0.5-0.6Ton |
| Grapple Rotation Angle | 360° |
| Max Dumping Height | 4700mm |
| Back-End Radius of Gyration | 1775mm |
| Dimension | |
| (Length*Width*Height) Travel Position | 6000*2100*2850mm |
| Wheel Base | 2600mm |
| Track(Front/Rear) | 1660mm/1580mm |
| Ground Clearance of Counterweight | 1060mm |
| Min Ground Clearance | 200mm |
| Technical Parameters | |
| Angle of Rotation | 360° |
| Machine Weight | 6500kg |
| Engine Model | YN38GB2/4100 |
| Rated Power | 50kw |
| Rated Speed | 2200r/min |
| Hydraulic System Working Pressure | 19.5Mpa |
| Hydraulic System Flow | 110L/min |
| Metering Gear Pump | 2*25ml/r |
| Grapple Swing Speed | 15~30r/min |
| Walking Speed | 36km/h |
| Grade Climbing Ability | 58%/30° |
| Tyre Model | 825.16 |
| Revolution Overdrive Pressure | 16Mpa |
| Full Circle Swinging Time | 5.5s |
| Fqt Fuel Quantity | ≥4L/h |
| Capacity of The Fuel Tank | 130L |
| Hydraulic Tank Capacity | 110L |
