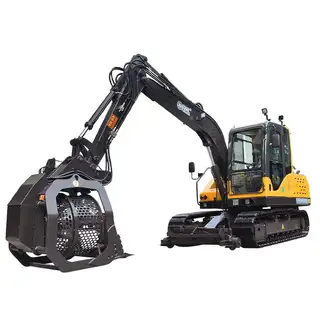

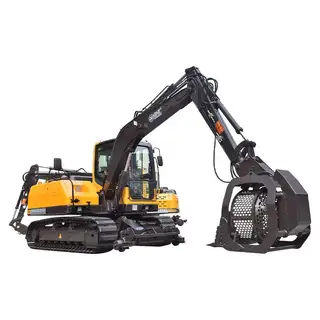

Soil Screen Machine with 360 ° Rotary Screening Bucket
Key Specifications / Features
Introducing our soil screen machine, weighing 8.5 tons and powered by 48 - 55 kW. This equipment is equipped with a 360° rotary screening bucket, offering a maximum bucket capacity of ≥ 0.25 m³ for efficient soil screening.
Request a quote
Detail Information
| Screening bucket attachment | |
| Max. bucket capacity | ≥0.25m³ |
| Swing speed | ≥30r/min |
| Max. digging force | ≥45KN |
| Dimensions | |
| (Length*width*height)Transport dimensions | 6100*2200*2650mm |
| Axle base | 2600mm |
| Track gauge | 1570mm |
| Width of crawler | 400mm |
| Ground clearance of counterweight | 780mm |
| Min. ground clearance | 280mm |
| Tech performance and specification | |
| Applicable railway gauge | 1435mm（customizable） |
| Angle of rotation | 360° |
| Machine weight | 8500kg |
| Engine model | YUCHA(NationalStageⅢ） |
| Rated power | 48KW～55KW |
| Rated speed | 2200r～2300r/min |
