BS 5352 Gate Valve, ASTM A182 F316, 2 Inch, 1500 LB, RTJ End
Key Specifications / Features
Discover our distinguished ASTM A182 F316 Gate Valve, expertly manufactured in our reputable facility in China. Crafted from high-quality ASTM A182 F316 material, this 2-inch gate valve adheres to both BS 5352 and API 602 standards, ensuring durability and optimal performance. With a robust Class 1500 LB rating and DN50 specifications, our gate valve is engineered for excellence in various applications.
Request a quote
Detail Information
Name: Forged Steel Welding Flange Stainless Steel Gate Valve
Material: Forged Steel, Stainless Steel, ASTM A182 F316
Size: 2 Inch, DN50
Pressure: Class 1500 LB, PN250
Standard: API 602, BS 5352
Connection: Flanged RF, Welded RTJ Flanged
Power: Manual, Pneumatic, Solenoid, Electrical Actuated
Seal material: Gasket
Test & Inspection: API 598
Temperature Of Media: Medium Temperature, Normal Temperature, High Temperature, -65℉ - 450℉ (-54℃ - 232℃)
Feature: Easy disassembly and assembly, Bolted Bonnet, High-Pressure Gate Valve, Welded Flanged
Product Range
Size: 1/4 Inch - 4 Inch, DN8-DN100
Pressure: Class 150 LB-800 LB, 1500 LB, 2500 LB, PN150, PN250, PN420
Design & Manufacture: API 602, ASME B16.34, BS 5352, DIN, JIS, ISO 15761, ISO 9001, ISO 14001, ISO 18001, GOST, CE, TS,
Face-to-face: ASME B16.10
End Dimension: ASME B1.20.1 (NPT) ASME B16.11 (SW) ASME B16.25 (BW) ASME B16.5 (RF, RTJ),
High Light: Pressure Seal Gate Valve, Bolted Bonnet Gate Valve, High-Pressure Gate Valve

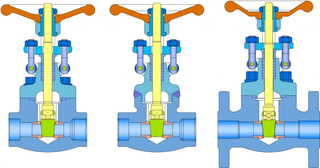

Connection: Socket Weld, RF Flange, FNPT
Material: Forged Steel, Stainless Steel, ASTM A182 F316
Size: 2 Inch, DN50
Pressure: Class 1500 LB, PN250
Standard: API 602, BS 5352
Connection: Flanged RF, Welded RTJ Flanged
Power: Manual, Pneumatic, Solenoid, Electrical Actuated
Seal material: Gasket
Test & Inspection: API 598
Temperature Of Media: Medium Temperature, Normal Temperature, High Temperature, -65℉ - 450℉ (-54℃ - 232℃)
Feature: Easy disassembly and assembly, Bolted Bonnet, High-Pressure Gate Valve, Welded Flanged
Product Range
Size: 1/4 Inch - 4 Inch, DN8-DN100
Pressure: Class 150 LB-800 LB, 1500 LB, 2500 LB, PN150, PN250, PN420
Design & Manufacture: API 602, ASME B16.34, BS 5352, DIN, JIS, ISO 15761, ISO 9001, ISO 14001, ISO 18001, GOST, CE, TS,
Face-to-face: ASME B16.10
End Dimension: ASME B1.20.1 (NPT) ASME B16.11 (SW) ASME B16.25 (BW) ASME B16.5 (RF, RTJ),
High Light: Pressure Seal Gate Valve, Bolted Bonnet Gate Valve, High-Pressure Gate Valve
Connection: Socket Weld, RF Flange, FNPT

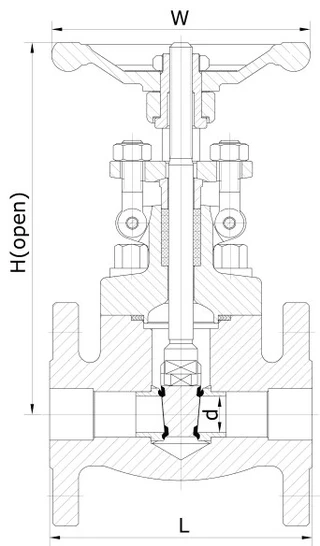

| Size (NPS) |
R.P | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | 2-1/2 | |
| Face To Face | CL150 | L (RF) |
108 | 117 | 127 | 140 | 165 | 178 | |
| CL300 | 140 | 152 | 165 | 178 | 190 | 216 | |||
| CL600 | 165 | 190 | 216 | 229 | 241 | 292 | |||
| Handwheel Diameter | W | 100 | 100 | 125 | 160 | 160 | 180 | ||
| Height | H | 165 | 169 | 207 | 230 | 249 | 283 | ||
| Flow Port Diameter | d | 10.3 | 13.5 | 18 | 23 | 29 | 36 | ||
| Weight (Kg) |
CL150 | B.B | 4.1 | 4.8 | 7.1 | 10 | 11.6 | 20 | |
| CL300 | 4.8 | 6.7 | 10 | 13.6 | 17.2 | 24 | |||
| CL600 | 5.4 | 7.4 | 10.6 | 15 | 19.2 | 28.8 | |||
 |
|||||||||
| CL900-CL1500 | Bolt Bonnet (BB). Reduce Port (RP), Outside Screw and Yoke (OS&Y), Flanged (RF/RTJ) |
||||||||
| Size (NPS) |
R.P | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | 2-1/2 | |
| Face To Face | CL90 | L (RF) | 216 | 229 | 254 | 279 | 305 | 368 | |
| CL1500 | |||||||||
| Handwheel Diameter | W | 125 | 125 | 160 | 160 | 180 | 180 | ||
| Height | H | 169 | 207 | 230 | 249 | 283 | 333 | ||
| Flow Port Diameter | d | 10.3 | 13.5 | 18 | 23 | 29 | 36 | ||
| Weight (Kg) | CL900 | B.B | 10.1 | 13.0 | 18.3 | 26.0 | 32.8 | 54.0 | |
| CL1500 | |||||||||
