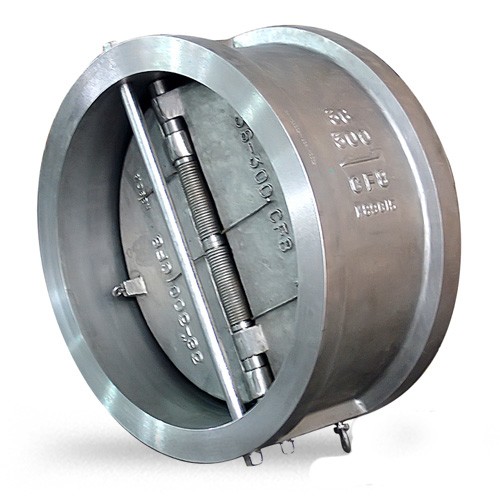

ASTM A351 CF8 válvula de retención de oblea, 8 pulgadas, 300 libras, API 594
Key Specifications / Features
Esta válvula de retención de obleas de 8 pulgadas (DN200) de clase 300 LB/PN50 está fabricada de acuerdo con los estándares ASTM A351 CF8 y cuenta con una doble placa, un extremo tipo obleas y un diseño sin retención, que cumple con las especificaciones API 594. Ideal para una variedad de aplicaciones industriales que requieren un control de flujo fiable.
Request a quote
Detail Information
Válvula de retención de oblea de doble placa de 8 pulgadas de clase 300 libras DN200 Api 594 A351 CF8 válvula de retención de doble placa
Estándar de diseño: API 594
Material corporal: ASTM A351 CF8
Diámetro nominal: 8 pulgadas, DN200
Presión: 300 libras
End Connection: Wafer Type End
Cara a cara: API 594
Prueba y prueba: API 598
Retainerless design
Our dual plate check valves are offered as retainerless in wafer, lug, flanged, hub end, butt-weld end and thread end body style.
Certificate
All products registered by LR's in accordance with CE/PED.
API 594 and API 6D certificates issued by the American Petroleum Institute.
Inherently fire-safe design
All of our check valves are inherently fire-safe due to the valve design, material and construction. In case of fire, both resilient seats and metal seat valves provide metal-to-metal sealing performance.
Lightweight and reduced size
Installation costs are greatly reduced by our lightweight and minimal space requirements. The compact design minimizes the distance between flanges and is easily installed between all flanges.
Estándar de diseño: API 594
Material corporal: ASTM A351 CF8
Diámetro nominal: 8 pulgadas, DN200
Presión: 300 libras
End Connection: Wafer Type End
Cara a cara: API 594
Prueba y prueba: API 598
| Item | Dual Plate Wafer Check Valve |
| Certification | ISO 9001, ISO 14001, ISO 18001, TS, CE, API |
| Brand | VERVO |
| Model number | H71W-300LB-8INCH |
| Port Size | 8 inch, DN200 |
| Structure type | Retainerless Design Dual Plate Wafer Check Valve |
| Pressure | 300 LB |
| Temperature | -46 - 325℃ |
| Connection form | Wafer Type End |
| Material | Casting Steel Stainless Steel A351 CF8 |
| Feature | Easy disassembly |
Retainerless design
Our dual plate check valves are offered as retainerless in wafer, lug, flanged, hub end, butt-weld end and thread end body style.
Certificate
All products registered by LR's in accordance with CE/PED.
API 594 and API 6D certificates issued by the American Petroleum Institute.
Inherently fire-safe design
All of our check valves are inherently fire-safe due to the valve design, material and construction. In case of fire, both resilient seats and metal seat valves provide metal-to-metal sealing performance.
Lightweight and reduced size
Installation costs are greatly reduced by our lightweight and minimal space requirements. The compact design minimizes the distance between flanges and is easily installed between all flanges.
