Through Conduit Flat Gate Valve, A216 WCB, 20 Inch, 600 LB
Key Specifications / Features
Detail Information
Name: Flat Gate Valve With By-Pass
Size: 20 Inch, DN500
Pressure: Class 600 LB, PN100
Material: ASTM A216 WCB
Standard: API 6D
Connection: BW End
Power: Manual, Pneumatic, Solenoid, Electrical Actuated
Feature: Full Port Gate Valve, Through Conduit
Product Range
Size: 2 - 48 Inch, DN50-DN1200
Pressure: 150-800 LB, 1500 LB, 2500 LB
Connection: Butt Welding, RF Flange, RTJ Flange
Temperature Of Media: Medium Temperature, Normal Temperature, High Temperature, -65℉ To 450℉ (-54℃ To 232℃)
Thru Conduit Gate Valves - API 6D
Slab & Expanding Designs
Sizes: 2" - 48"
Classes: 150 - 1500
|
DESIGN & MANUFACTURING STANDARDS |
|
|---|---|
|
Basic Design |
API 6D |
|
Face-to-Face Dimension |
ANSI B16.10 |
|
Flange End Dimension |
ANSI/ASME B16.5 (2" to 24") |
|
Butt-Weld End Dimension |
ANSI/ASME B16.25 |
|
Inspection & Testing |
API 6D |
|
Fire Safe Design |
API 6FA |
VERVO Valve manufactures some of the most dependable cast steel/forged steel Through Conduit Slab and Expanding Gate Valves in the industry. Both designs utilize flanged and butt-weld end connections, and are manufactured and tested in accordance with API 6D. The full port bi-directional flow capability minimizes pressure drop and turbulence. The VERVO design offers many features and options beneficial for oil, gas, and liquid applications making it the most demanded Thru Conduit Gate on the market.
|

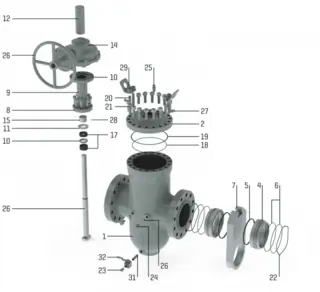

No. |
Part |
Material |
||
|---|---|---|---|---|
|
Figure Number: 0813-VN |
Figure Number: 0813-VR |
Figure Number: 0215-HD |
||
|
1 |
Body |
ASTM A216 WCC |
ASTM A352 LCC |
|
|
2 |
Bonnet |
ASTM A105 |
ASTM A350 LF2 |
|
|
3 |
Stem |
ASTM A564 T Type 630 17-4 |
||
|
4 |
Seat |
ASTM A105 + ENP |
ASTM A350 LF2 + ENP |
|
|
5 |
Seat Insert |
Nylon |
RTFE |
Devlon |
|
6 |
Seat O-Rings |
Viton AED |
HNBR |
|
|
7 |
Gate |
ASTM A105 + ENP |
ASTM A350 LF2 + ENP |
|
|
8 |
Yoke Base |
ASTM A105 |
||
|
9 |
Yoke Tube |
ASTM A106 Gr. B Pipe |
||
|
10 |
Yoke Top |
ASTM A105 |
||
|
11 |
Lantern Ring |
PEEK |
||
|
12 |
Handwheel |
Carbon Steel |
||
|
13 |
Gear |
Carbon Steel |
||
|
14 |
Stem Protector |
Clear Plastic |
||
|
15 |
Internal Stop Nut |
ASTM A105 |
||
|
16 |
Gland |
ASTM A105 |
||
|
17 |
Packing |
Viton/Duck |
||
|
18 |
Bonnet O-Ring |
Viton AED |
HNBR |
|
|
19 |
Gasket |
Stainless Steel/Graphite - GHE |
||
|
20 |
Stud |
ASTM A193 B7M |
ASTM A320 L7M |
|
|
21 |
Heavy Hex Nut |
ASTM A194 2HM |
ASTM A320 L7M |
|
|
22 |
Wave spring |
17-7 Stainless Steel |
||
|
23 |
NPT Plug |
316 Stainless Steel |
||
|
24 |
Grease Fitting |
316 Stainless Steel |
||
|
25 |
Vent Fitting |
316 Stainless Steel |
||
|
26 |
Ball Check |
316 Stainless Steel |
||
|
27 |
Packing Injection Fitting |
316 Stainless Steel |
||
|
28 |
Set Screw |
B7M |
||
|
29 |
Lift Plate |
A36 |
||
|
30 |
Ball Valve |
Carbon Steel |
||
|
31 |
Pipe Nipple |
ASTM A106 |
||
