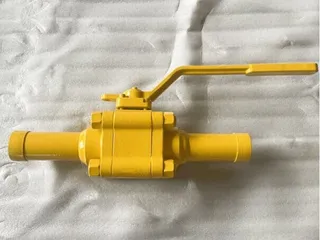

Three Piece Ball Valve, API 608, 2 Inch, 1500 LB, A105N

Name: Three Piece Ball Valve, API 608, 2 Inch, 1500 LB, A105N
SKU: BV-20240826-04
Availability: InStock
Rating: 5 (2 reviews)

Key Specifications / Features

As a leading API 608 ball valve manufacturer in China, we specialize in 3-piece ball valves made from carbon steel ASTM A105N. Our 2-inch (DN50) valves are rated for Class 1500 LB (PN250) and feature 100 mm nipples on both sides for easy installation. Designed with a full port for maximum flow efficiency, these valves are ideal for high-pressure applications. Engineered for durability and performance, our valves meet stringent industry standards, ensuring reliable operation and long-lasting service in demanding environments.

Request a quote

Detail Information

On this page

Carbon Steel Ball Valve, Three-pieces, 100 mm Nipples on Both Sides

Valve Description

Design Standard: API 608
Body Material: ASTM A105N
Nominal Size: 1 Inch, DN25
Nominal Class: 1500 LB, PN250
End Connection: 100 mm Nipples on Both Sides
Operation: Lever
Face to Face: MFG'S
Test and Inspection: API 598

Product Range

Body Material: Carbon Steel
Normal Diameter: 1/2 - 2 Inch (DN15 - DN50)
End Connection: BW, Flange
Pressure Range: Class 150 - 2500 LB (PN16 - PN420)
Working Temperature: -29°C - +429°C

Technical Parameters and Characteristics

Product Name	Ball Valve
Nominal Diameter	1/2 - 2 Inch
Design Temperature	Down to -29°C
Design Pressure	Class 150 - 2500 LB
Material	Carbon Steel
Design Standard	API 608
Face to face	ASME B16.10
Operation	Gear, Lever
Connection End	Flange
Test Standard	API 598
Package	Plywood
Application	The oil and gas industry
Certificate	CE, TUV, ISO9001, ISO14001
