Forged Stainless Steel Gate Valve, A182 F316, 2IN, CL1500
Key Specifications / Features
Forged Stainless Steel Gate Valve Manufacturer: Pressure Seal, Bolted Bonnet Gate Valves, ASTM A182 F316, 2IN, DN50, CL1500, PN250, API 602, BS 5352, RF, RTJ.
Request a quote
Detail Information
Pressure Seal Gate Valve, Bolted Bonnet Gate Valve
Name: Forged Steel Welding Flange Stainless Steel Gate Valve
Material: Forged Steel, Stainless Steel, ASTM A182 F316
Size: 2 Inch, DN50
Pressure: Class 1500 LB, PN250
Standard: API 602, BS 5352
Connection: Flanged RF, Welded RTJ Flanged
Power: Manual, Pneumatic, Solenoid, Electrical Actuated
Seal material: Gasket
Test & Inspection: API 598
Temperature Of Media: Medium Temperature, Normal Temperature, High Temperature, -65℉ - 450℉ (-54℃ - 232℃)
Feature: Easy disassembly and assembly, Bolted Bonnet, High-Pressure Gate Valve, Welded Flanged
Product Range
Size: 1/4 Inch - 4 Inch, DN8-DN100
Pressure: Class 150 LB-800 LB, 1500 LB, 2500 LB, PN150, PN250, PN420
Design & Manufacture: API 602, ASME B16.34, BS 5352, DIN, JIS, ISO 15761, ISO 9001, ISO 14001, ISO 18001, GOST, CE, TS,
Face-to-face: ASME B16.10
End Dimension: ASME B1.20.1 (NPT) ASME B16.11 (SW) ASME B16.25 (BW) ASME B16.5 (RF, RTJ),
High Light: Pressure Seal Gate Valve, Bolted Bonnet Gate Valve, High-Pressure Gate Valve
Connection: Socket Weld, RF Flange, FNPT
Name: Forged Steel Welding Flange Stainless Steel Gate Valve
Material: Forged Steel, Stainless Steel, ASTM A182 F316
Size: 2 Inch, DN50
Pressure: Class 1500 LB, PN250
Standard: API 602, BS 5352
Connection: Flanged RF, Welded RTJ Flanged
Power: Manual, Pneumatic, Solenoid, Electrical Actuated
Seal material: Gasket
Test & Inspection: API 598
Temperature Of Media: Medium Temperature, Normal Temperature, High Temperature, -65℉ - 450℉ (-54℃ - 232℃)
Feature: Easy disassembly and assembly, Bolted Bonnet, High-Pressure Gate Valve, Welded Flanged
Product Range
Size: 1/4 Inch - 4 Inch, DN8-DN100
Pressure: Class 150 LB-800 LB, 1500 LB, 2500 LB, PN150, PN250, PN420
Design & Manufacture: API 602, ASME B16.34, BS 5352, DIN, JIS, ISO 15761, ISO 9001, ISO 14001, ISO 18001, GOST, CE, TS,
Face-to-face: ASME B16.10
End Dimension: ASME B1.20.1 (NPT) ASME B16.11 (SW) ASME B16.25 (BW) ASME B16.5 (RF, RTJ),
High Light: Pressure Seal Gate Valve, Bolted Bonnet Gate Valve, High-Pressure Gate Valve
Connection: Socket Weld, RF Flange, FNPT

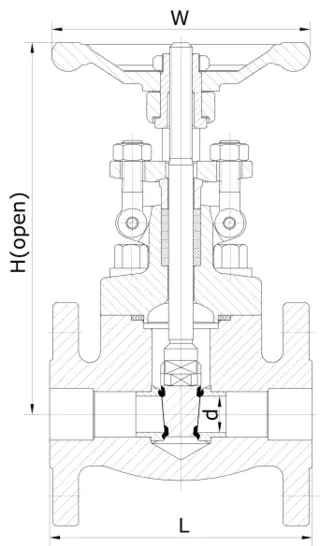

| Size (NPS) |
R.P | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | 2-1/2 | |
| Face To Face | CL150 | L (RF) |
108 | 117 | 127 | 140 | 165 | 178 | |
| CL300 | 140 | 152 | 165 | 178 | 190 | 216 | |||
| CL600 | 165 | 190 | 216 | 229 | 241 | 292 | |||
| Handwheel Diameter | W | 100 | 100 | 125 | 160 | 160 | 180 | ||
| Height | H | 165 | 169 | 207 | 230 | 249 | 283 | ||
| Flow Port Diameter | d | 10.3 | 13.5 | 18 | 23 | 29 | 36 | ||
| Weight (Kg) |
CL150 | B.B | 4.1 | 4.8 | 7.1 | 10 | 11.6 | 20 | |
| CL300 | 4.8 | 6.7 | 10 | 13.6 | 17.2 | 24 | |||
| CL600 | 5.4 | 7.4 | 10.6 | 15 | 19.2 | 28.8 | |||
 |
|||||||||
| CL900-CL1500 | Bolt Bonnet (BB). Reduce Port (RP), Outside Screw and Yoke (OS&Y), Flanged (RF/RTJ) |
||||||||
| Size (NPS) |
R.P | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | 2-1/2 | |
| Face To Face | CL90 | L (RF) | 216 | 229 | 254 | 279 | 305 | 368 | |
| CL1500 | |||||||||
| Handwheel Diameter | W | 125 | 125 | 160 | 160 | 180 | 180 | ||
| Height | H | 169 | 207 | 230 | 249 | 283 | 333 | ||
| Flow Port Diameter | d | 10.3 | 13.5 | 18 | 23 | 29 | 36 | ||
| Weight (Kg) | CL900 | B.B | 10.1 | 13.0 | 18.3 | 26.0 | 32.8 | 54.0 | |
| CL1500 | |||||||||
The dimension and weights are for reference only and subject to change without notice.
1. The flanged valve are defaulted by an integral flange
2. For more size or dimensional information, please contact our sales representative
