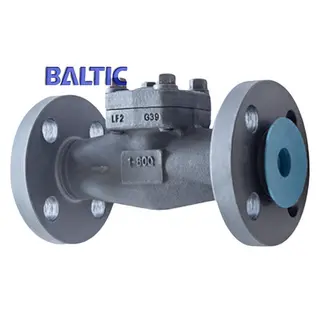

ASTM A350 LF2 Lift Check Valve, API 602, 800 LB, 1 Inch, SW

Name: ASTM A350 LF2 Lift Check Valve, API 602, 800 LB, 1 Inch, SW
SKU: VERVO-LCV-20250110-03
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

As a leading Lift Check Valve factory in China, we specialize in API 602 design valves crafted from low-temperature alloy steel, ASTM A350 LF2. Our valves feature a Class 800 LB pressure rating, PN130, and a 1-inch size with DN25 specifications. Equipped with socket weld ends, these valves provide secure and reliable connections for your piping systems. Designed for low-temperature applications, our Lift Check Valves ensure efficient backflow prevention and long-lasting performance in demanding industrial environments.

Request a quote

Detail Information

API 602 Lift Check Valve, ASTM A350 LF2, Class 800 LB, 1 Inch, SW.

Valve Description:
Lift Check Valve, Low-Temperature Alloy Steel, 1 Inch, 800 LB.
Design: API 602
Body: ASTM A350 LF2
Nominal Size: 1 Inch
Nominal Class: Class 800 LB, PN130
End Connection: SW
Face to Face: MFG'S
Test and Inspection: API 598

Product Range:
Body Material: Carbon Steel
Normal Diameter: 1/2 Inch - 2 Inch (DN15 - DN50)
End Connection: NPT, SW, BW, Flange
Pressure Range: 150 - 2500 LB (PN16 - PN420)
Working Temperature: -40°C - +300°C

Technical Parameters and Characteristics

Product Item	Lift Check Valve
Nominal Diameter	1/2 Inch - 2 Inch
Design Temp.	Down to -29°C
Design Pressure	Class 150 LB - 2500 LB
Material	Low Temperature Carbon Steel
Design Standard	API 602
Face to Face	MFG'S
Connection End	NPT, SW, BW, Flange
Test Standard	API 598
Package	Plywood
Application	water, oil and gas.
